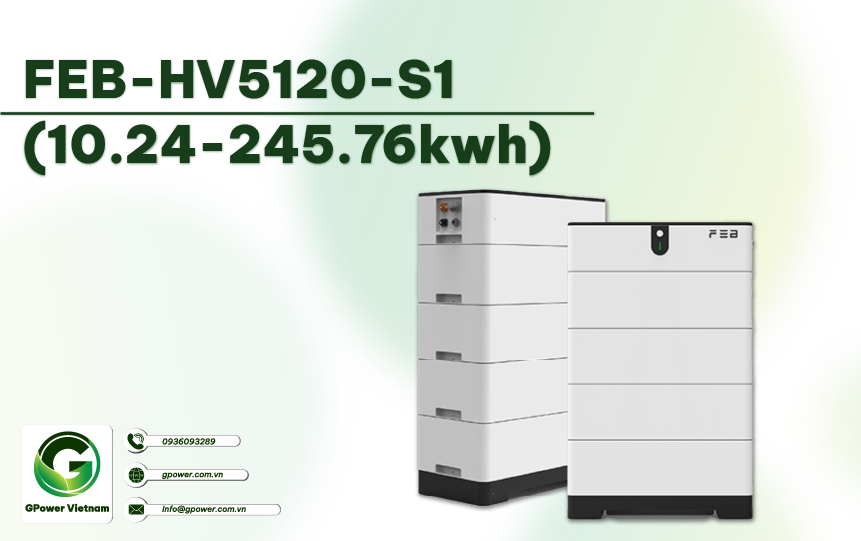

Are you searching for a powerful and reliable energy storage solution for your home? Let's explore the FEB-HV5120-S1 residential high-voltage energy storage system. With its flexible design and expandability, the FEB-HV5120-S1 is a perfect choice for energy storage applications ranging from minimal to comprehensive.
With high compatibility, the FEB-HV5120-S1 offers a versatile storage solution for intermittent renewable energy sources such as solar, wind, tidal, and many others. This ensures that you and your family always have backup power and can save energy from renewable sources.
Advantages of FEB-HV5120-S1
The FEB-HV5120-S1 is designed with several outstanding advantages.
-
Flexible expandability: Connect in series or parallel to increase energy storage capacity according to your needs.
-
IP55 protection: Suitable for indoor or outdoor applications.
-
Module design: Compact and stackable design, saving space and facilitating installation.
-
Easy installation and use: No need for cable connections between modules, saving time and effort during the installation process.
-
High compatibility: Compatible with various inverters, ensuring flexibility and seamless integration with your home electrical system.
Specifications
The technical specifications of this product line are quite impressive:
|
Product's name |
HV5120-S1 |
|
Nominal capacity rating |
5.12kwh |
|
Actual available capacity |
4.86kwh (95% DOD) |
|
Battery Type |
1P32S (1 Parallel, 32 Serial |
|
Rated voltage |
102.4Vdc |
|
Working voltage range |
91.2.~115.2 Vdc |
|
Maximum charging current |
25A |
|
Maximum charging current |
40A |
|
The web of communication |
CAN/RS485 |
|
Ability of extension |
Series: Max 8pcs; Parallel: Max 8 groups; |
|
Working humidity |
≤95% (RH) No Condensation |
|
Operating temperature |
Charging: -10℃～50℃ ; discharge: -20℃～50℃ |
|
Size (L*W*H) |
636mm*330mm*188mm |
|
Mass |
48kg |
|
Installation method |
Module installation (no cables between modules) |
|
Protect |
IP55 |
|
Working altitude |
＜2000m |
|
Standard |
CE, IEC62619, IEC63056, IEC/EN61000-6-2/3, UN38.3 |
|
Charge and discharge cycle |
6000 cycles @ 25℃, 95% DOD, 60% EOL |
|
Used Time |
15 years (25℃) |
By utilizing the residential high-voltage energy storage solution FEB-HV5120-S1, you can ensure stable and efficient power supply for your family. With its flexible expandability, compact design, and advanced features, the FEB-HV5120-S1 is the top choice for residential energy storage systems.
For more information about the FEB-HV5120-S1, please contact us via phone or visit the GPower Vietnam website. We will be happy to address any inquiries you may have and assist you in selecting the right energy storage solution for your home.
