Instron Multi-Purpose Tensile and Compression Testing Machine - A solution for precise material mechanical testing according to international standards.

In modern industry, testing the mechanical properties of materials is a crucial step in ensuring product quality, durability, and safety. From metals, plastics, and rubber to composite materials and medical devices, all need to be tested according to international standards before being put into production or commercial use.

In the field of materials testing equipment, Instron is a world-leading brand with over 75 years of experience. Instron's testing systems are widely used in laboratories, research institutes, universities, and manufacturing businesses worldwide.

The Instron Universal Testing Machine (UTM) stands out for its high accuracy, stable operation, intelligent software, and ability to meet multiple standards such as ASTM, ISO, DIN, and JIS.

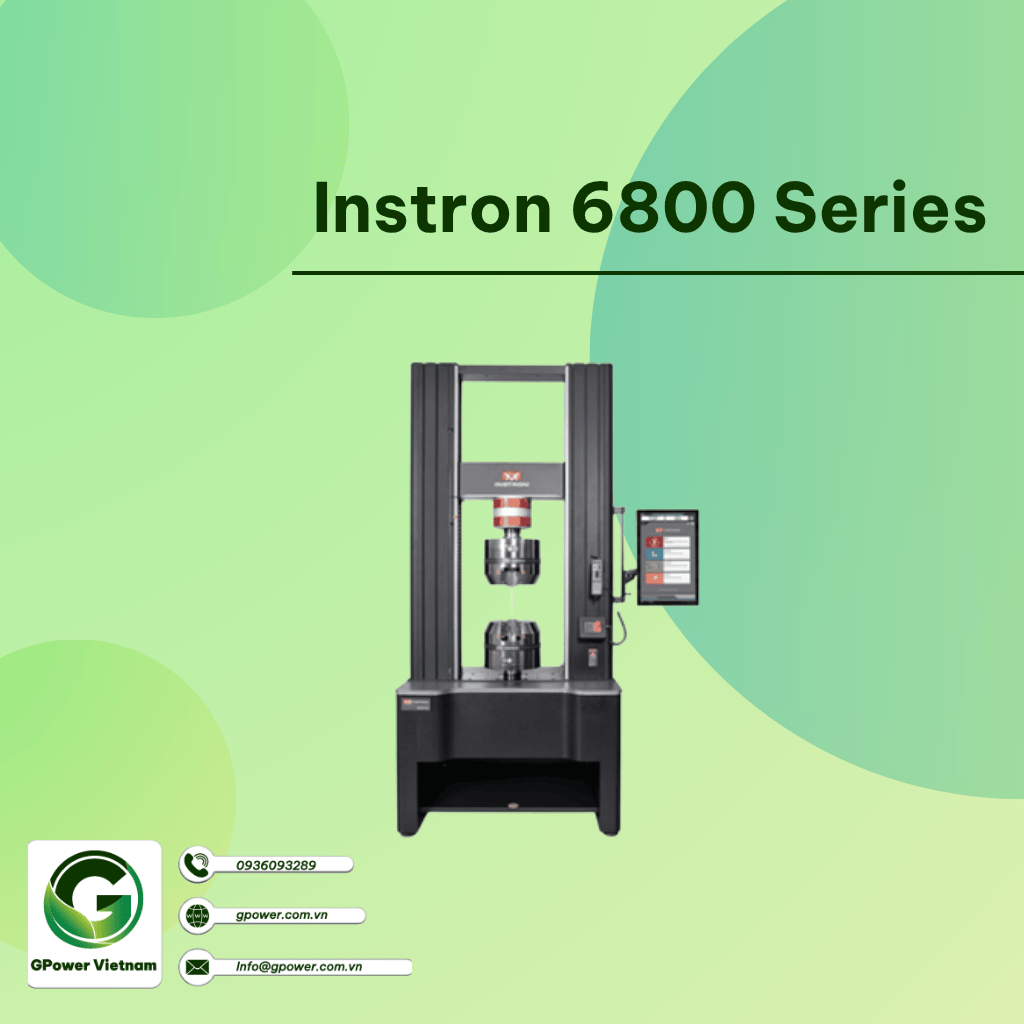

Instron 6800 Series Multi-purpose Compression Testing Machine

1. What is a Tensile Test?

Tensile testing is a method for determining the tensile strength of a material by applying force to a test sample until it deforms or fractures.

The test results help to evaluate:

• - Tensile strength.
• - Yield limit.
• - Elongation.
• - Elastic modulus.
• - Flexibility.
• - The load-bearing capacity of the material.

This is the most fundamental and important test in the field of material mechanical properties testing.

2. What is the Instron multi-purpose tensile and compression testing machine?

The Instron multi-purpose tensile and compression testing machine is a specialized system used to test the mechanical properties of a wide variety of materials.

The device can perform the following:

• - Tensile Test
• - Compression Test
• - Flexural Test
• - Peel Test
• - Shear Test
• - Tear Test
• - Adhesion test

The machine is suitable for a wide range of materials such as metal, plastic, rubber, wires, cables, composite materials, packaging, electronic components, and medical devices.

3. Operating principle

The operating procedure includes the following steps:

1. Clamp the specimen using the appropriate jaws.
2. Select the test criteria in the software.
3. The servo motor controls the movement of the horizontal bar.
4. Load cells measure the force of impact.
5. Travel encoder.
6. Bluehill software processes data in real time.
7. Automatically generate results reports.

4. Structure of the machine

An Instron tensile and compression testing system includes:

• - Machine frame.
• - Guide rail.
• - Movable crossbar.
• - Servo motors.
• - Ball screw drive system.
• - Force sensor
• - Encoder.
• - Sample clamp.
• - Controller.
• - Computer.
• - Bluehill Universal software.

6. Key Features

High accuracy

• - Force error is up to ±0.5%.
• - High repeatability.
• - Results are consistent.

Servo Control

• - Smooth movement.
• - Precise speed control.
• - Reduces vibrations.

Bluehill Universal software

• - User-friendly interface.
• - Data management.
• - Export reports to PDF and Excel.
• - Automatically calculates parameters.

Wide range of load capacities:  500 N,  1 kN, 2, 5, 10, 30, 50, 100, 250, 600 kN

Various types of clamps

• - Pulling jaws.
• - Compression jaws.
• - Bending test kit.
• - Peel test kit.
• - Shear testing kit.
• - Friction testing kit.

6. Applications

The machine is used in:

• - The metal industry.
• - The plastics industry.
• - The rubber industry.
• - Packaging industry.
• - Electronics industry.
• - Medical equipment.
• - Composite materials.
• - University.
• - Research institute.
• - QC and QA Department.

7. Benefits of using the Instron tensile and compression testing machine

• - Product quality control.
• - Meets international standards.
• - Increase the reliability of test results.
• - Saves inspection time.
• - Improve the efficiency of product research and development.
• - Support for improving production processes.

8. Why should you choose Gpower?

Investing in an Instron multi-purpose tensile and compression testing system is not just about choosing a highly accurate device, but also about deciding on a long-term testing solution. Besides the quality of the equipment, the capabilities of the supplier play a crucial role in ensuring the system is properly configured, installed, operated stably, and maintained effectively throughout its lifespan.

Gpower proudly offers professional material testing solutions, committed to providing customers with 100% genuine Instron equipment , complete with CO (Certificate of Origin) and CQ (Certificate of Quality) certificates and clear origin documentation. With a team of experienced engineers, Gpower advises on selecting the correct load capacity (2 kN, 5 kN, 10 kN, 50 kN, 100 kN...), load cell type, clamps, and accessories suitable for each specific application, optimizing investment efficiency and meeting testing standards such as ASTM, ISO, JIS, and DIN.

9. Conclusion

The Instron multi-purpose tensile and compression testing machine is the optimal solution for businesses and laboratories requiring high-precision mechanical testing of materials. With advanced technology, modern software, and the ability to meet a wide range of testing standards, Instron helps improve product quality and optimize quality control processes.

When choosing Gpower, customers not only receive the equipment, but Gpower also accompanies them throughout the product's lifecycle through installation services, operation training, Bluehill Universal software usage guidance, long-term warranty, periodic maintenance, equipment calibration, and prompt technical support . With the motto "Providing comprehensive solutions – Long-term partnership with customers ," Gpower is a reliable partner helping businesses build modern quality control systems, enhance research capabilities, optimize production processes, and meet the stringent requirements of both domestic and international markets.
