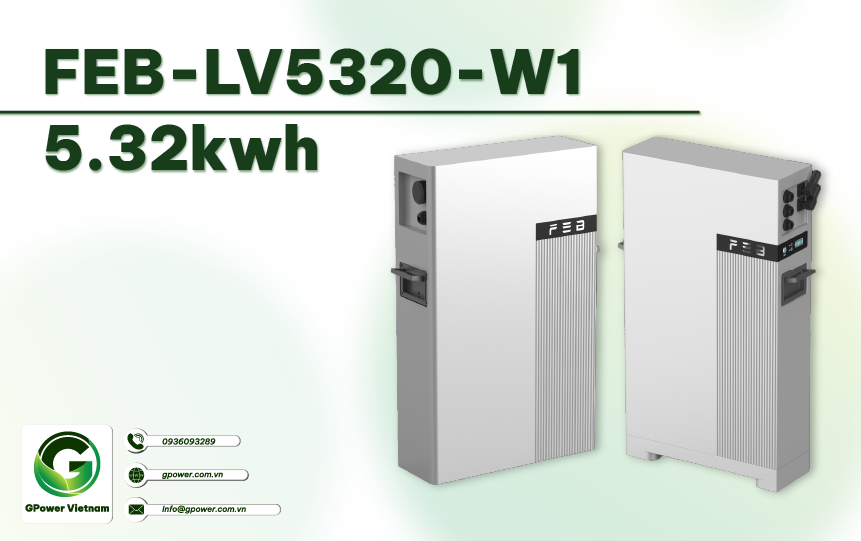

Low-Voltage Residential Energy Storage System FEB-LV5320-W1 (5.32 kWh)
The FEB-LV5320-W1 is specifically designed to meet the energy storage needs of households, from minimal requirements to full-scale domestic usage. Additionally, it serves as a storage solution for intermittent renewable energy sources such as solar power, wind, and tidal energy.
Advantages of FEB-LV5320-W1:
- Flexible expandability: Allows for parallel connection of 8 modules, resulting in a total capacity of up to 42.56 kWh.
- IP55 protection: Suitable for indoor or outdoor applications.
- Compact modular design: Slim and compact module design allows for easy wall-mount installation without occupying much space. It can be easily used without the need for cable connections between modules.
- Compatibility with various inverters: Ensures compatibility and flexibility for integration with your existing energy storage system.
Specifications
|
Product's name |
LV5120-W1 |
|
Nominal capacity rating |
5.32kwh |
|
Actual available capacity |
5.05kwh (95% DOD) |
|
Battery Type |
1P16S |
|
Rated voltage |
51.2Vdc |
|
Working voltage range |
43.2.~57.6 Vdc |
|
Maximum charging current |
50A |
|
Maximum charging current |
100A |
|
The web of communication |
CAN/RS485 |
|
Ability of extension |
Max. 8 in parallel (42.56kwh) |
|
Working humidity |
≤95% (RH) No Condensation |
|
Operating temperature |
Charging: -10℃～50℃ ; discharge: -20℃～50℃ |
|
Size (L*W*H) |
420mm*140mm*650mm |
|
Mass |
~44kg |
|
Protect |
IP55 |
|
Working altitude |
＜2000m |
|
Standard |
CE, IEC62619, IEC63056, IEC/EN61000-6-2/3, UN38.3 |
|
Charge and discharge cycle |
6000 cycles @ 25℃, 95% DOD, 60% EOL |
|
Used Time |
15 years (25℃) |
Please contact us today to learn more about FEB-LV5320-W1 and other energy storage solutions. We will support you in the process of selecting and implementing the most suitable energy storage system for your household.
GPower Vietnam - Towards a sustainable and energy-efficient future!
