What are NVH silent chambers used to test

1. What is an anechoic chamber?

An anechoic chamber is a space specifically designed to completely eliminate two factors: external noise intrusion and internal sound reflection. The result is an acoustically empty environment – ​​where sound remains where it originates, without bouncing, resonating, or propagating along unwanted paths.

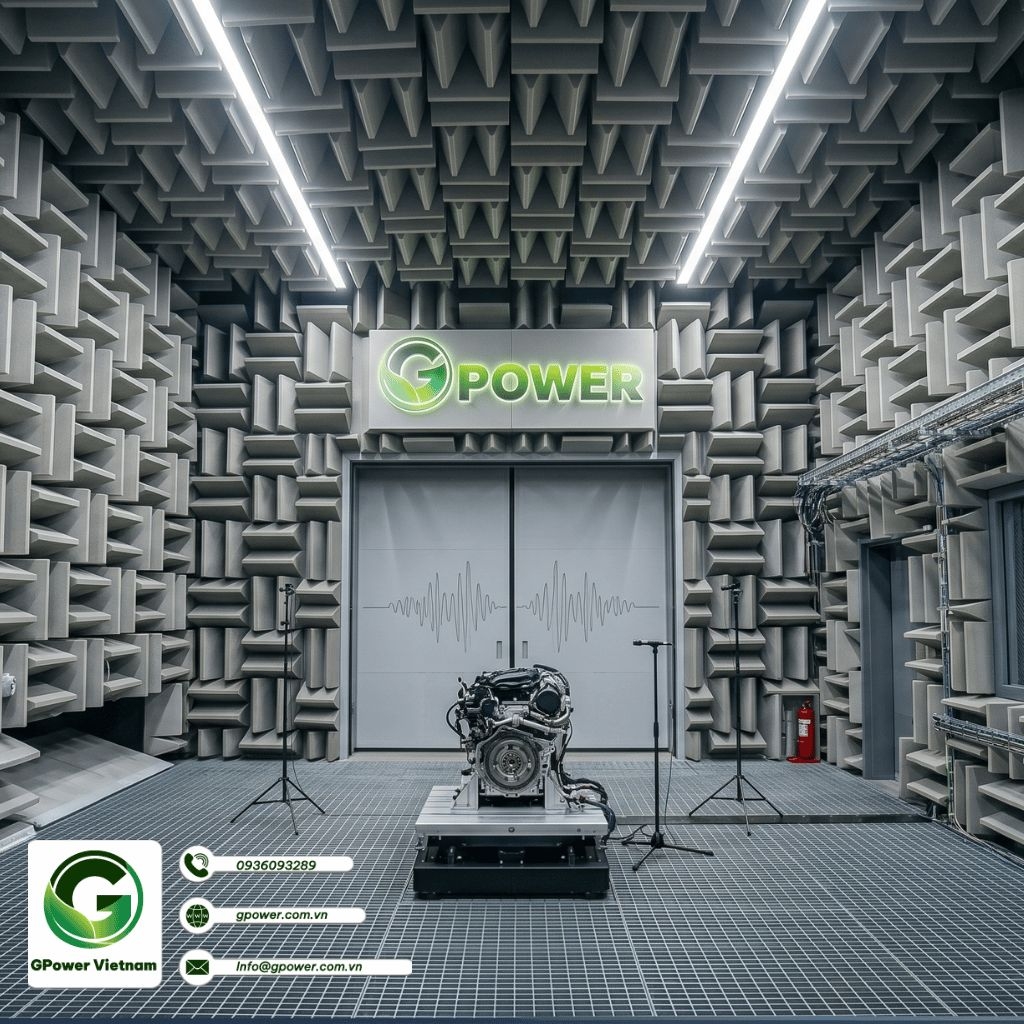

The walls, floors, and ceilings of the soundproof chamber are covered with wedge-shaped or pyramid-shaped sound-absorbing panels made from high-density foam. These panels are capable of absorbing over 99% of incoming sound, eliminating reflections at all angles. The entire room is placed on a vibration isolation system to prevent vibrations from the ground, traffic, or surrounding equipment from entering the interior.

In the automotive industry, NVH (Non-Vehicle Dynamic Range) test chambers are typically large enough to hold an entire vehicle – and are equipped with a chassis dynamometer so the car can operate at different speeds right inside the chamber.

2. Why is a Silent Chamber Needed for NVH Testing?

In real-world conditions on the road, the sound from a vehicle is constantly "polluted" by dozens of sources of interference: ambient wind noise, other vehicles, construction noise, and even birdsong. A person sitting in a moving vehicle would find it difficult to distinguish whether the "buzzing" sound they hear is from the electric motor, the tires, or the air conditioning fan.

A silent chamber eliminates all that interference. When the vehicle is operating in a silent chamber, engineers can:

• - Accurately isolate each sound source.
• - Measure sound pressure levels with high reliability.
• - Compare data between tests and between different vehicle models under the same standard conditions.
• - Detects extremely faint sounds that would normally be drowned out by background noise in a normal environment.

3. NVH Tests Were Conducted in a Silent Chamber

3.1. Interior Noise Testing

This is the most common application. Microphones are placed in multiple locations throughout the cabin—driver's ear, front-seat passenger's ear, rear-seat passenger's ear—to measure the noise levels actually perceived by occupants. The vehicle is driven on rollers at various speeds, while engineers monitor the sound spectrum in real time. The goal is to identify which frequencies are exceeding the standard threshold and from which source.

3.2. Exterior Noise Testing (Pass-by Noise Testing)

Microphones are placed outside the vehicle to measure the sound emitted from the exhaust system, engine, and tires. This data is used to verify compliance with international standards such as ECE R51 (Europe) and the testing requirements of individual countries. This is a mandatory requirement for a vehicle to be licensed for sale in many markets.

3.3. Powertrain NVH Testing

Electric motors or motor assemblies operate in a silent chamber at various load and RPM levels. Engineers create an operating point map—identifying precisely which RPM and load combinations produce noise exceeding the threshold. In electric vehicles, this test is particularly important for controlling motor whine and inverter noise.

3.4. Wind Noise Testing

Combined with a wind tunnel or using a wind sound simulation system in a sound chamber, engineers can accurately analyze aerodynamic noise emanating from the A-pillars, rearview mirrors, door seals, and bodywork gaps. This test cannot be reliably performed on public roads because real-world wind speeds are constantly changing.

3.5. Squeak & Rattle Testing

The vehicle is shaken at various amplitudes and frequencies, simulating driving over rough roads. Microphones in the cabin record every sound that occurs. In this silent chamber, even the slightest creak from a plastic clip in the dashboard can be detected and located. This is an extremely important test because squeaks and rattles are the leading cause of customer complaints about vehicle quality.

3.6. Brake NVH Testing

Brake squeal and brake judder are measured in a silent chamber to eliminate environmental interference and obtain clean frequency spectrum data. Engineers can accurately determine the resonance frequency between the brake pads and brake discs, and then adjust the material or surface shape to correct the issue.

3.7. Climate System NVH Testing

The fans, air ducts, and air distribution mechanisms are tested independently in a silent chamber. The goal is to determine which fan speeds cause resonance, which locations within the duct system generate aerodynamic noise, and the overall noise level of the air conditioning system at each operating mode.

4. Subjective Assessment in the Silent Room

Not everything can be measured by machines. A crucial part of the silent chamber testing process is subjective evaluation – engineers and actual test drivers sit in the car, listen, and rate their perceptions on a standardized scale.

Interestingly, the same decibel level can be perceived differently depending on how the sound is distributed across frequencies, how it changes over time, and its periodicity. A steady "buzz" at 2,000 Hz may be less irritating than an irregular "clicking" at 500 Hz, even at the same energy level. Silent chambers create the conditions for this kind of subtle assessment to become reliable and repeatable.

Subjective data from the silent chamber is then compared with objective data from sensors to build a predictive model: "If this design were changed, how would users perceive things differently?"

5. Measurement Standards Applied in Silent Chambers

6. Silent Chambers in the Modern Automotive Development Chain

The NVH booth is not the end point of the NVH process – but rather a key testing station used continuously throughout the vehicle development lifecycle:

• - Component development phase: Individual components such as motors, gearboxes, and braking systems are tested before integration into the vehicle.
• - Prototype phase (test assembly): Measure the entire vehicle and compare it to the NVH goals set at the beginning of the project.
• - Pre-production phase: Final confirmation that the mass-produced vehicle meets all internal and legal NVH standards.
• - Production quality control phase: Random sampling from the production line to detect deviations from the NVH standard due to production variations.

For automakers expanding into international markets, cabin data is not only a basis for improving vehicles, but also technical proof that their products meet the standards of each export market.

The silent chamber is where the truth about a car's acoustic quality is fully revealed – there's no hiding place, no interference to blame. A car that passes the silent chamber tests is one where the engineers truly understand every sound source, every vibration path, and every potential weakness.

In an era where consumers are increasingly demanding about their in-car experience – especially in electric vehicles which eliminate engine noise but amplify all other sounds – car cabins are no longer the exclusive domain of luxury brands. They have become the standard for any manufacturer wanting to compete seriously in the global market.
