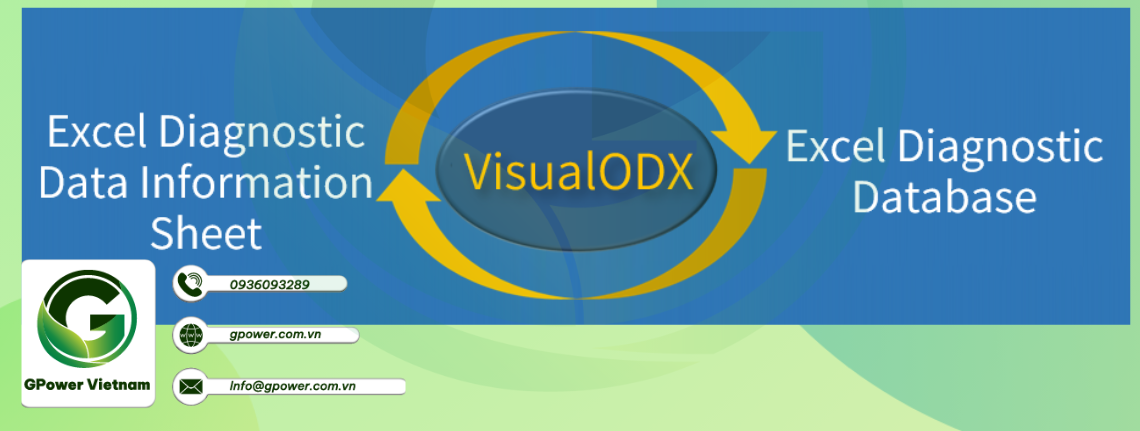

In the process of creating an ODX database, we need to input a large amount of data and cope with multiple data formats. This is not only time-consuming and labor-intensive, but also easy to make mistakes, leading to inefficiency and slow development. Based on years of diagnostic experience in the automot-ive industry, we developed VisualODX — an automatic ODX data conversion tool that uses standard Excel diag-nostic questionnaires to describe ECU di-agnostic specifications, and through which Excel files can be automatically converted into ODX/PDX/CDD/DEXT data files. VisualODX is easy to use, one-button conversion, powerful, greatly reducing manpower investment, while efficient and effective, thus accelerating the development progress.
I. ODX/PDX Overview
ODX (Open Diagnostic data eXchange) files are an opened standardized diagnostic data format for the exchange of diagnostic data throughout the vehicle lifecy-cle. PDX is the compressed file format for ODX file. ODX is a data format defined by ASAM to describe diagnostic specifications(MCD-2 D/ISO 22901-1). The ODX diagnostic standard is now used by major OEMs.

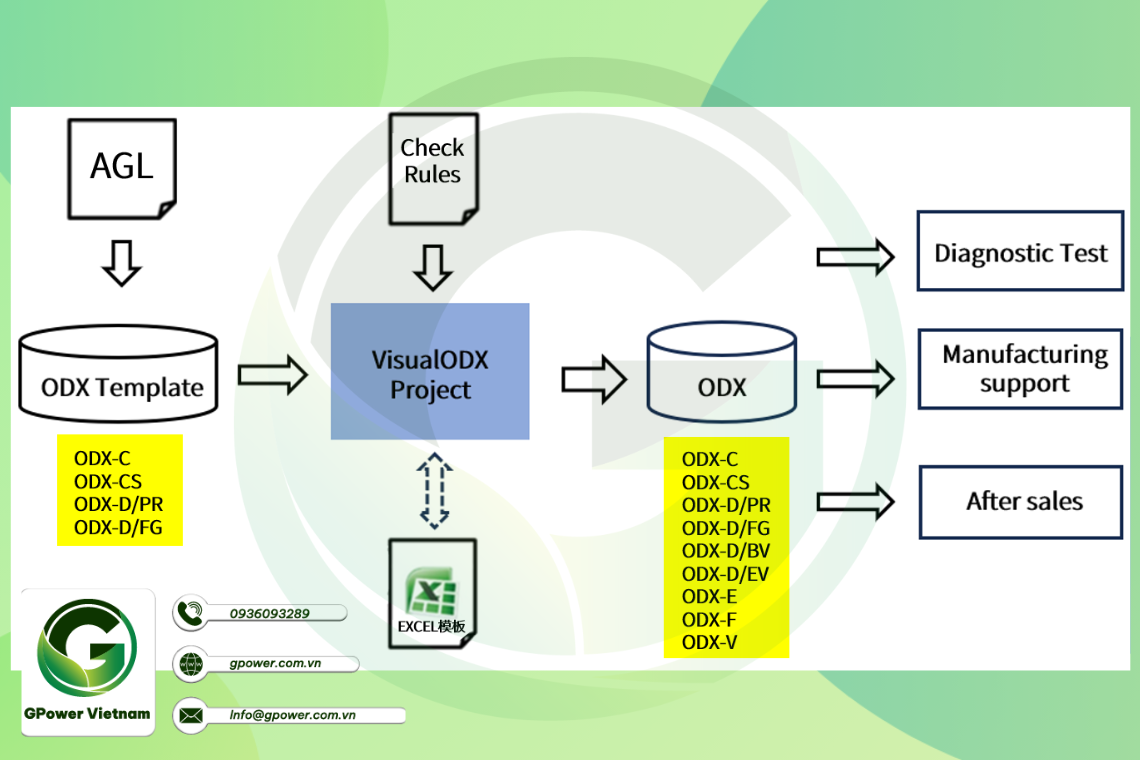

Ⅱ. ODX Generation Process
- • Customized ODX templates based on OEM's specifications, with odx-c/odx-cs/partial odx-d files included in the templates
- • The client follows a standard Excel diagnostic questionnaire to complete the diagnostic information form
- • Load ODX templates and Excel diagnostic questionnaires through VisualODX to generate standard ODX/PDX/CDD/DEXT databases (which can be used in later stages of development, testing, production and after-sales)

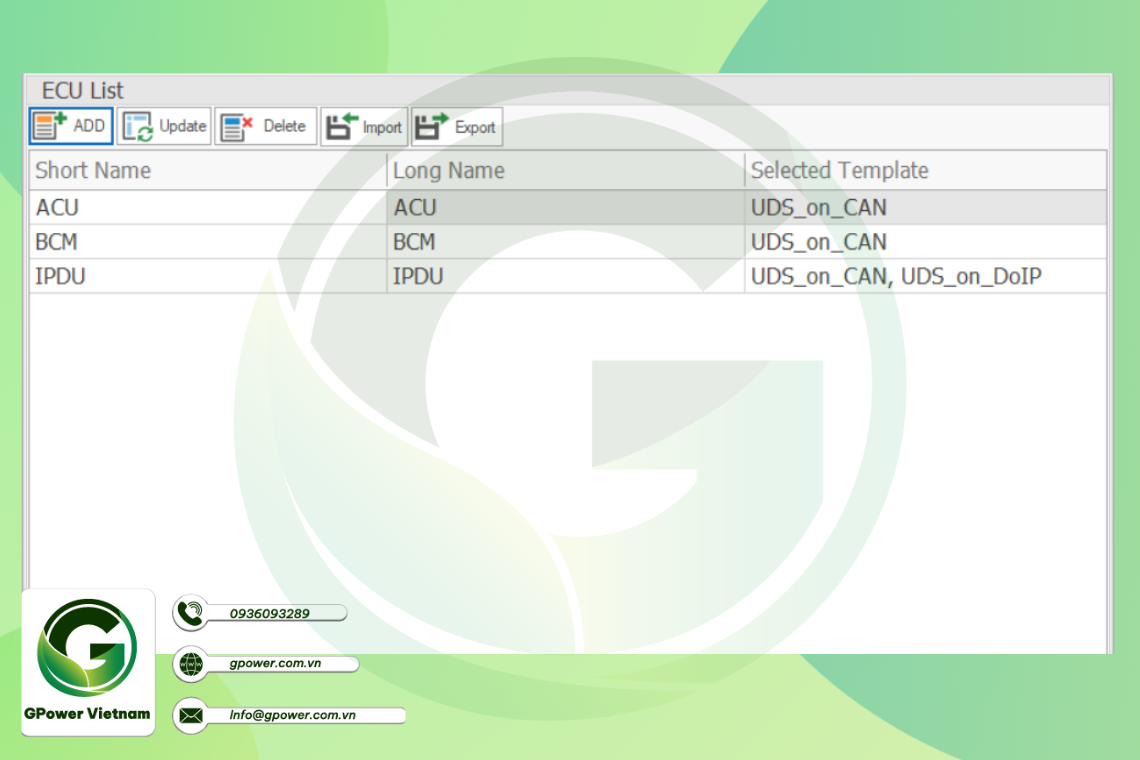

ECU Configuration

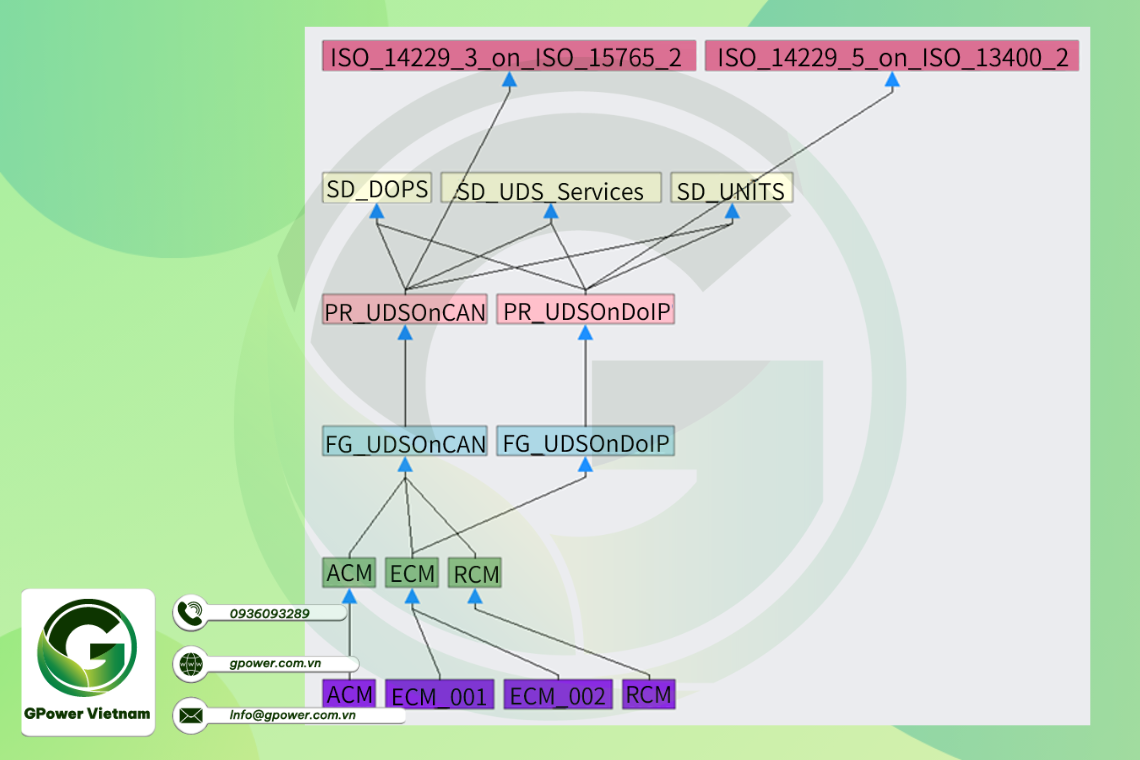

Vehicle Topology

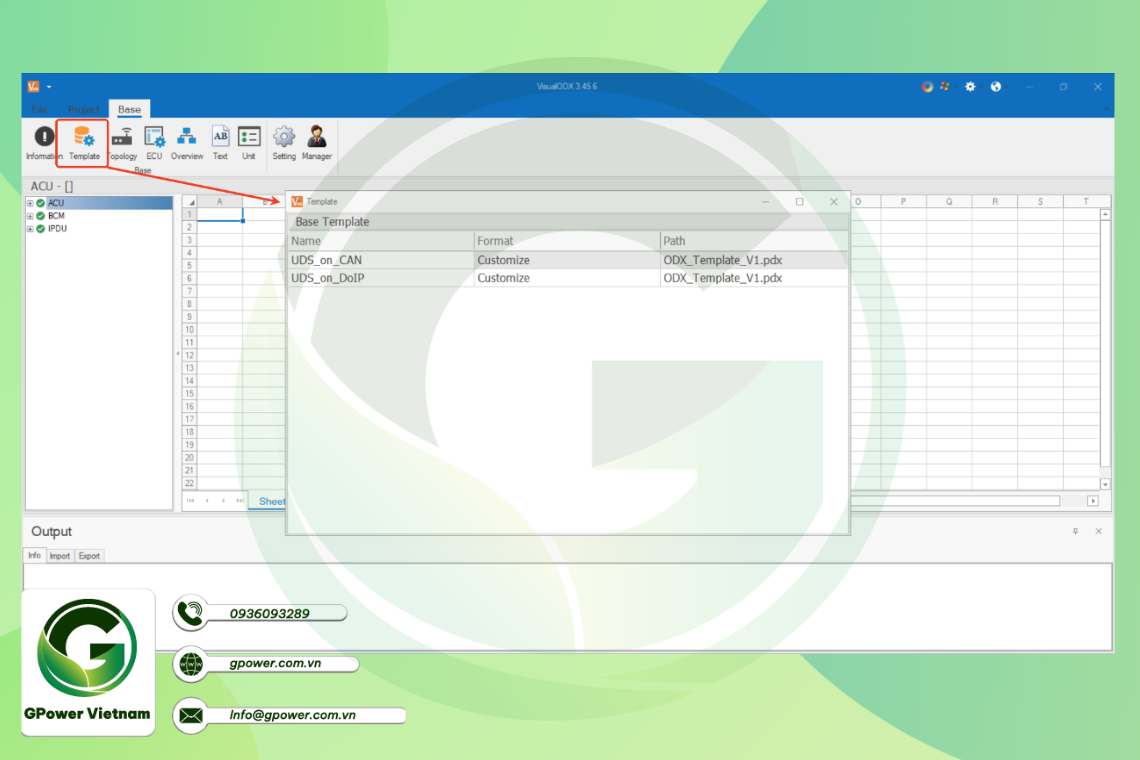

Template Import

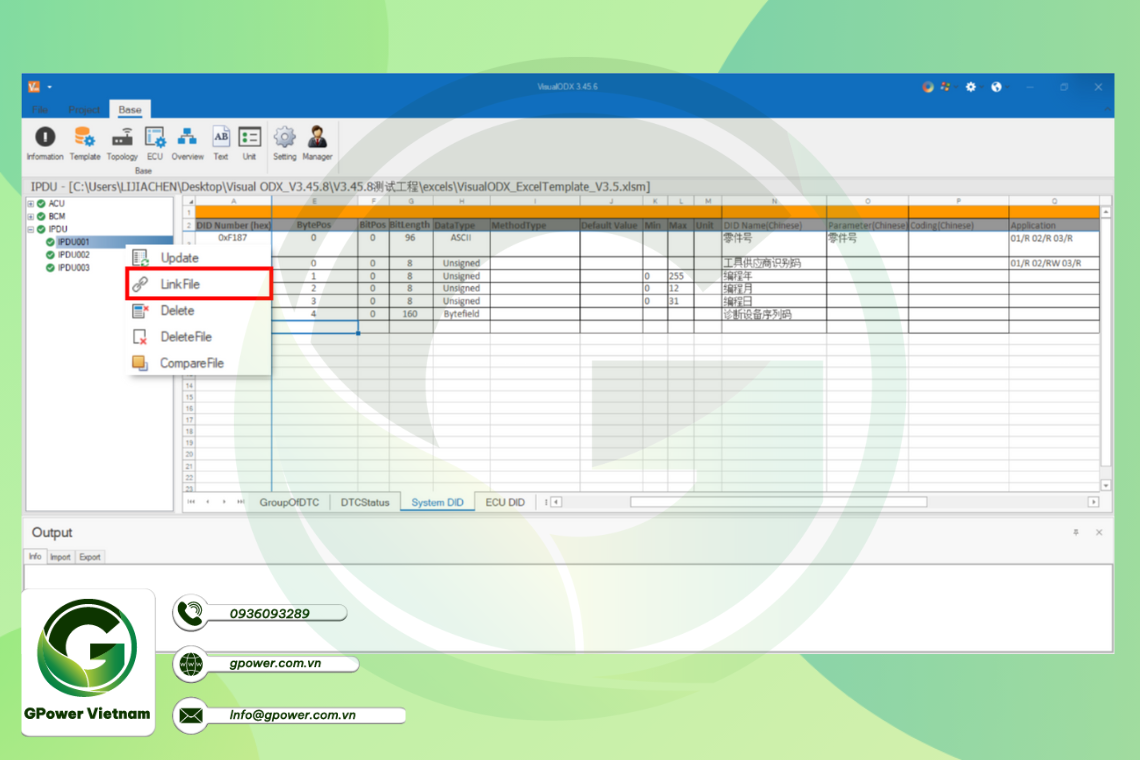

Excel Import

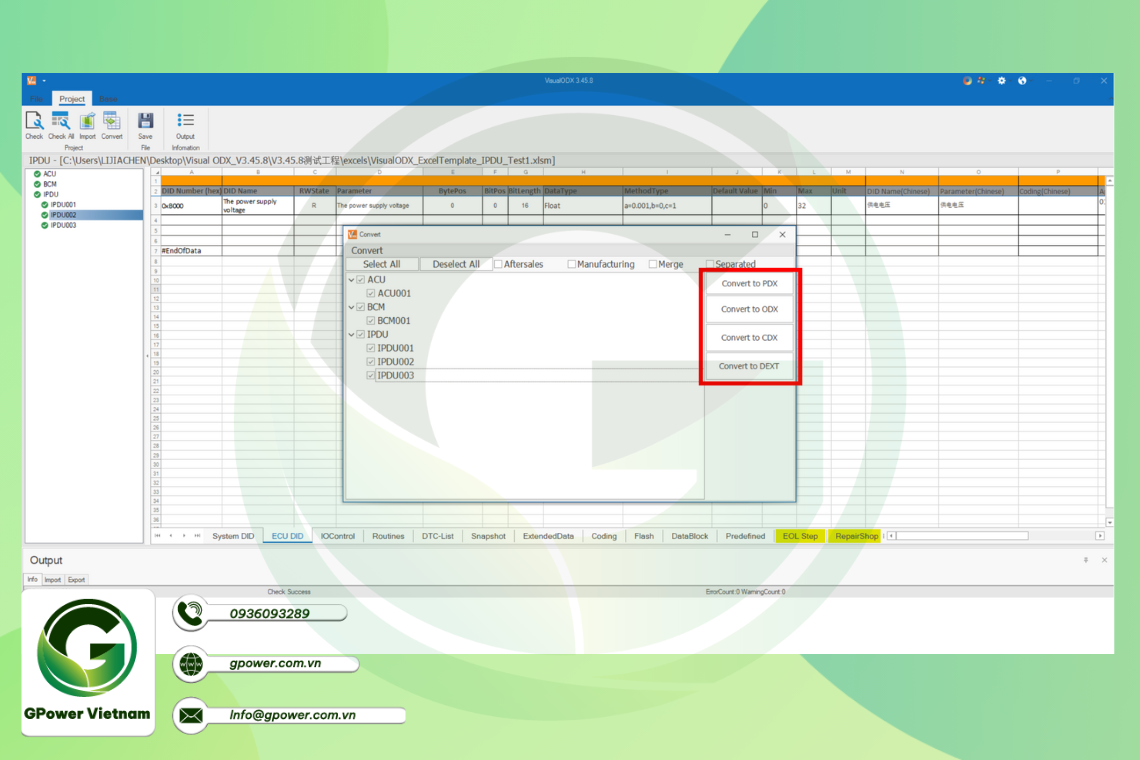

Database Convert
Ⅲ. Application Scenarios
- • OEM diagnostic function development and debugging phase, ODX/PDX/CDD/DEXT/ATXML database building and testing
- • Production department creates whole vehicle ODX database
- • After-sales department creates ODX databases and performs after-sales inspections in combination with diagnostics
- • ECU supplier diagnostic function development and testing
Ⅳ. Product Advantages
- • The standard Excel template filling is convenient for customers to quickly achieve the creation of the whole vehicle Excel questionnaire
- • Intelligent checking of configuration integrity and real-time display of check status
- • Innovative project configuration interface for easy project engineering management
- • One-click conversion, automatically generate ODX/PDX/CDD/DEXT/ARXML files, concise and efficient
- • Supports Excel sheet import for single or multiple ECUs with unlimited number of Excel Sheets
- • Follow the ASAM standard ODX templates and Excel templates combined with double checking, effectively guaranteeing the completeness and accuracy of the ge-nerated data
If there any questions, we are more than happy to support you.
