VisualODX V5 New Upgrade

VisualODX is a diagnostic design tool based on the ISO 22901-1 (ODX) standard, which enables one-click import and export of diagnostic data. ODX (Open diagnostic data exchange) is a standard diagnostic data structure developed by ASAM, whose core purpose is to ensure that ECU diagnostic and programming information can be transferred in a consistent data format between system suppliers, vehicle manufactures, service dealers, and diagnostic tools.

In order to respond to strategic customers and market demand, and to solve the low-efficiency and labour-intensive pain points of ODX generation in the industry; WINDHILL releases VisualODX-V5.0.

VisualODX V5.0 is newly upgraded, this version retains the original diagnostic questionnaire (Excel) one-click conversion function, and adds the database editing function, which meets the operating habits of different users, with richer functions and higher conversion speed, bringing users a better using experience!

Software Advantages

- Data standardisation, follow the ASAM standard ODX templates, Excel templates of the double check, effectively guarantee the completeness and accuracy of the generated data.
- Standard Excel template, easy for customers to quickly achieve the whole vehicle Excel questionnaire creation.
- One-click conversion button to automatically generate ODX/PDX/CDD/DEXT files.
- Integrated editor and conversion functions, taking into account a wide range of user preferences.
- Massive data processing, support for single and whole vehicle database export, unlimited number of Excel tables.
- Compatible with the mainstream production, testing, after-sales and other tool chain software on the market.
- Support for platforms that allow for multi-departmental collaboration to achieve cost reductions and efficiencies.
- Supports customised Excel diagnostic questionnaires.
- Globally, more than 20 OEMs have applied the software to their production models, and the data integrity and stability have been recognised by many customers.

Mode Introduction

VisualODX V5.0 contains Expert Mode and Quick Mode, the two modes can be switched with one click.

Expert mode allows data editing and supports BASE library customisation;

One-click import of Excels is also possible, and data is automatically split and displayed；

Expert Mode——Data Editing

Quick mode supports one-click import and export of Excels views, taking into account the operating habits of old users.

Quick Mode——One-click table import

New Feature

Data Editing

Innovative data editing interface, the combination of table import and manual editing, the operation is simple and easy to use.

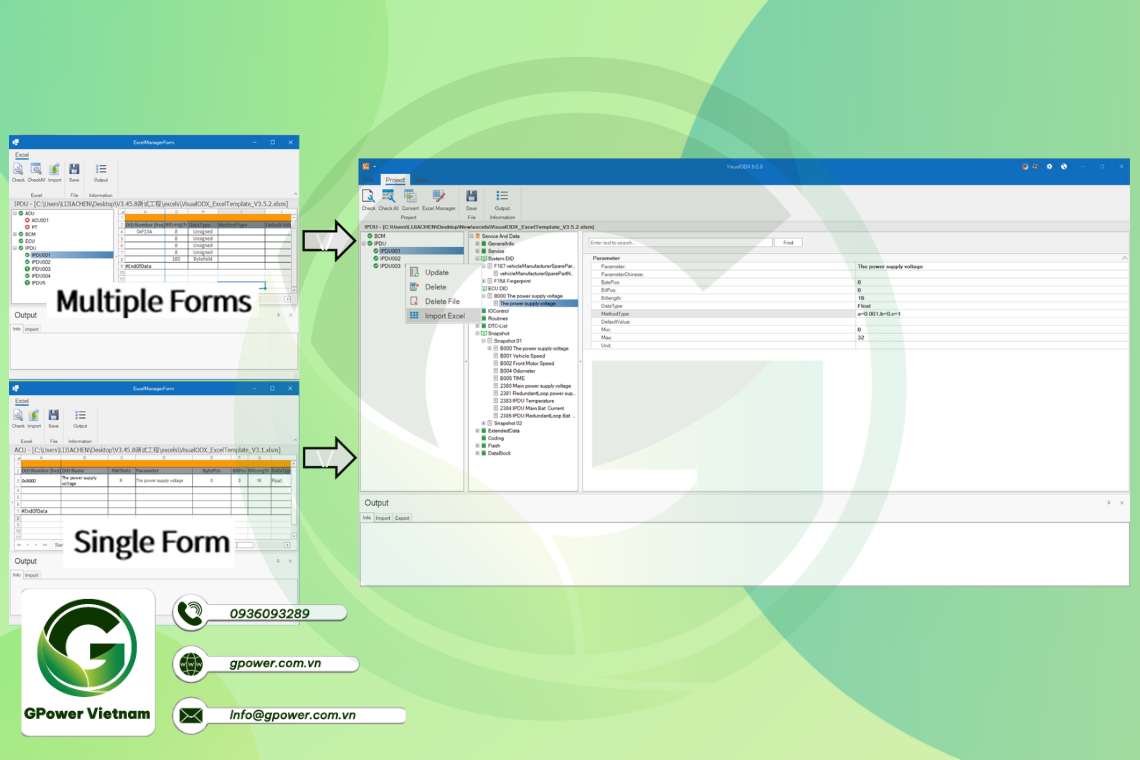

- Support for single/multiple Excel import
- Support for manual database editing
- Supports one-click checking function

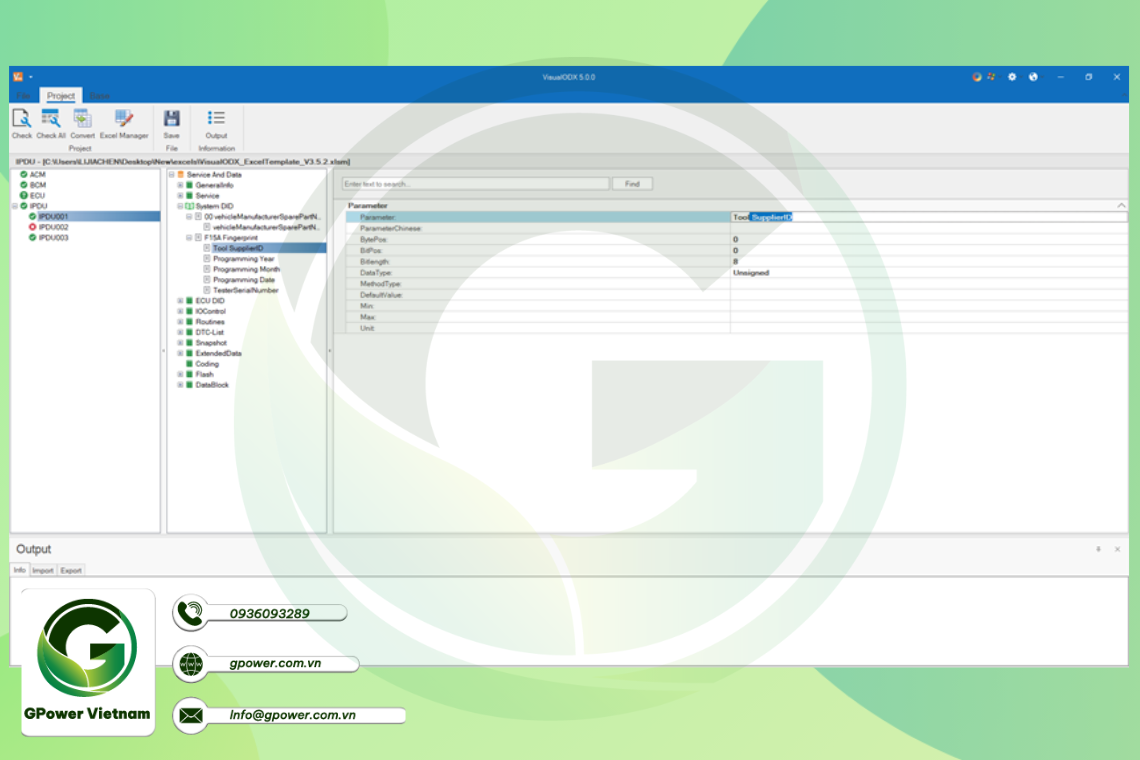

1） Powerful Diagnostic Database Editor

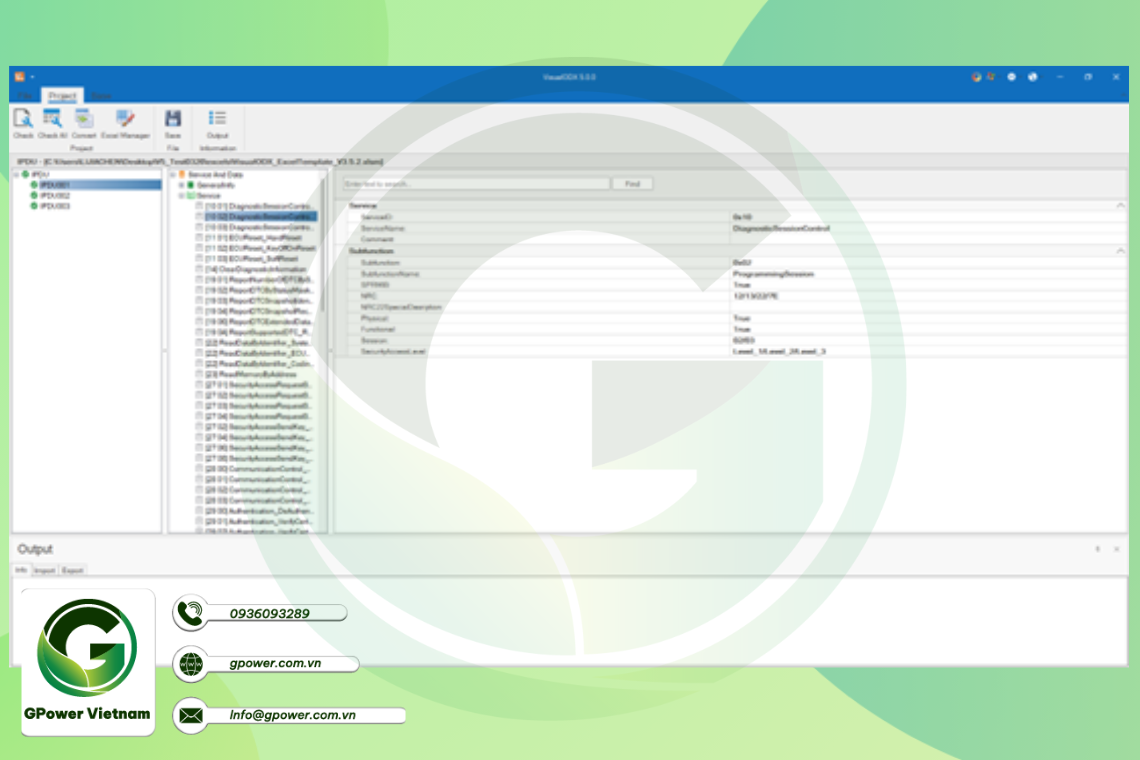

- Editing data contains Service, DID, IO Control, Routine, DTC, Snapshot, Extended Data, Coding and more.
- Data visualisation with tree structure for intuitive description of ODX/PDX/CDD/DEXT/ARXML data.

VisualODX V5——Data Editing Function

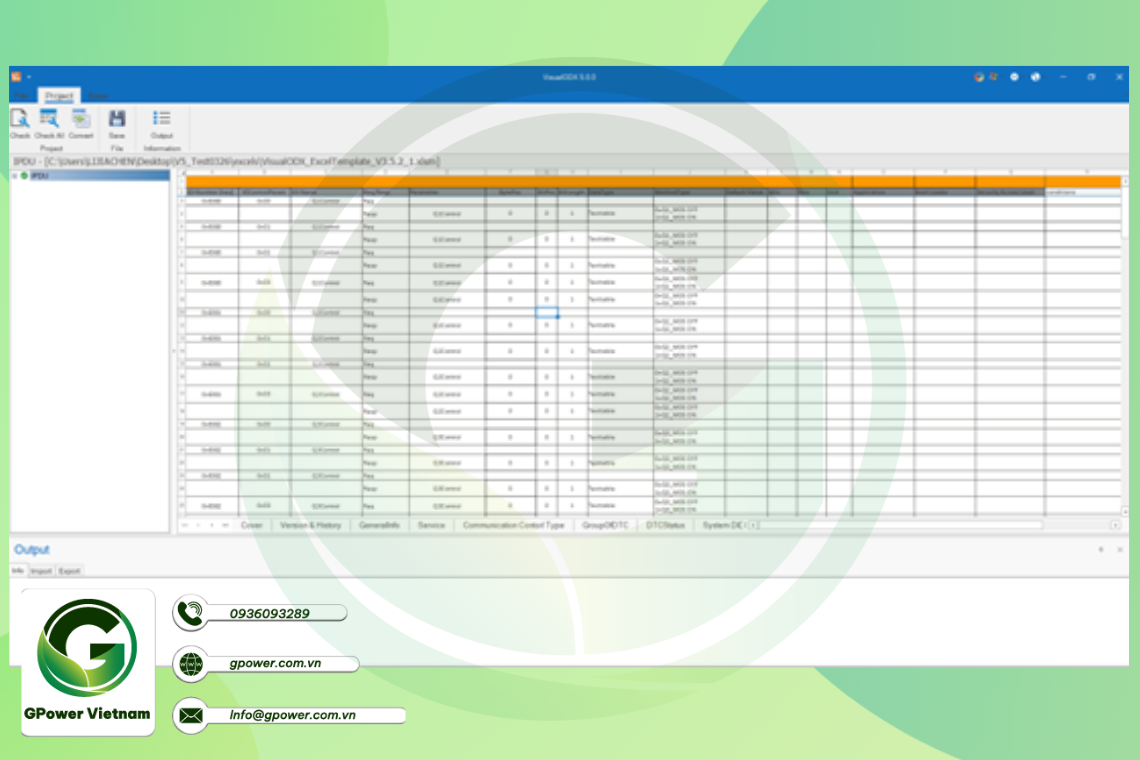

2）Diagnostic questionnaire (Excel) one-click import

- Consistency checking is performed as it is imported, effectively avoiding syntax errors and ensuring data accuracy.
- Unlimited number of forms, support for single ECU/vehicle data import and export;
