Altitude Testing is performed to determine the ability of components and/or equipment to be stored, transported or used under low air pressure conditions.

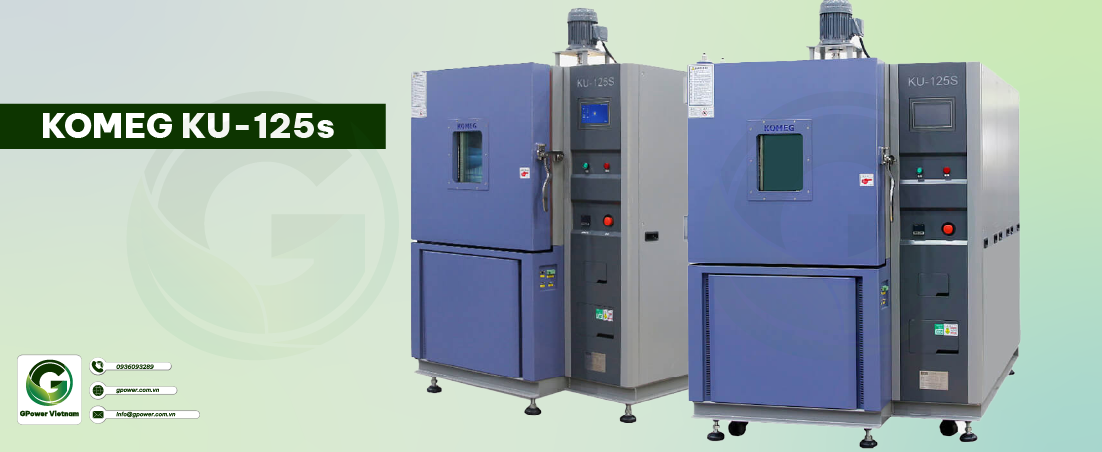

KOMEG high altitude test chamber combines temperature and altitude environments with optional humidity for simultaneous environmental testing. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries. If you need to test potentially explosive items such as batteries, you can choose explosion-proof altitude test chambers.
Standards of Altitude Test Chambers
- - GB/T 10590-2006 Technical conditions for high and low temperature/low pressure test chambers.
- - GB/T 2423.21-2008 Low pressure test method M.
- - GB/T 2423.25-2008 Low temperature/low pressure comprehensive test Z/AM.
- - GB/T 2423.26-2008 Test High temperature/low pressure comprehensive test Z/BM.
- - GJB150.2A-2009 Low pressure (altitude) test.
- - GJB150.3A-2009 High temperature test.
- - GJB150.4A-2009 Low temperature test.
- - GJB150.6A-2009 Temperature altitude test.
- - GB/T 5170.1-2008 Testing methods for environmental testing equipment for electrical and electronic products General principles.
- - GB/T 5170.2-2008 Testing methods for environmental test equipment for electrical and electronic products Temperature test equipment.
- - …
(Compatible with air transport and aircraft component testing standards:)
- - MIL-STD-810C Altitude temperature test.
- - JIS W 0812 Aircraft Airborne Equipment.
- - JIS W 7114 Aircraft electrical connectors.
- - JIS C 60068-2-13 Environmental test method (electrical/electronic) Low voltage test.
- - JIS C 60068-2 Dry heat/low air pressure combined test.
- - ASTM D 6653, ISO 2873 Decompression testing of filled shipping packages and unit loads.

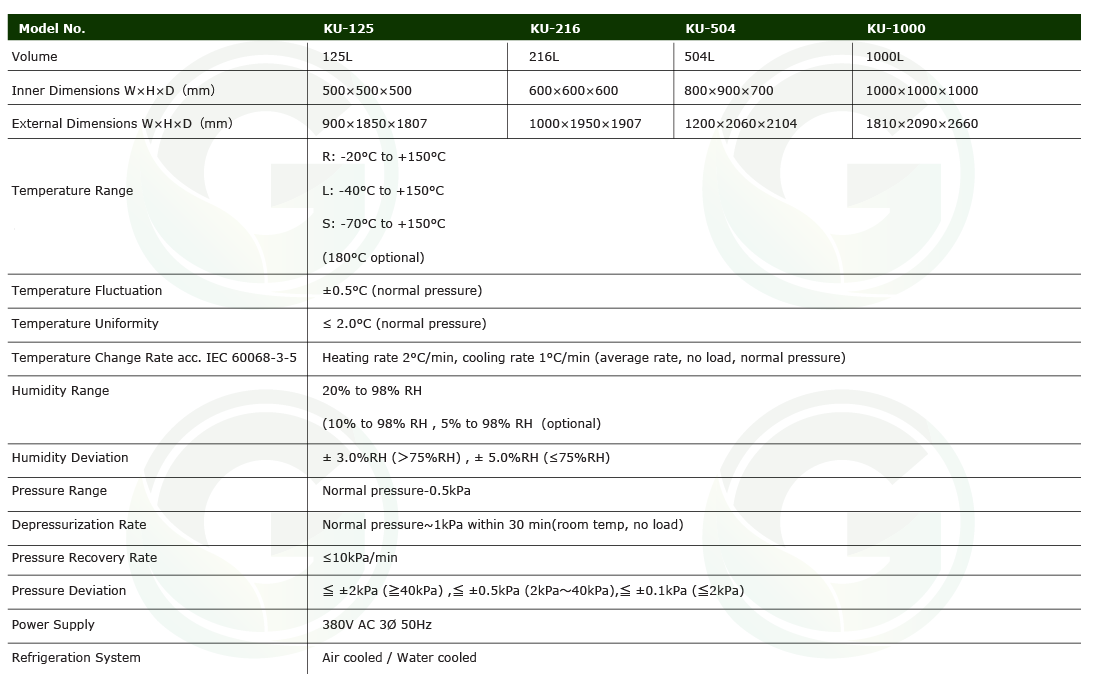

Technical Specifications
Contact GPower Vietnam for detailed information about the product and accompanying warranty and maintenance services.
