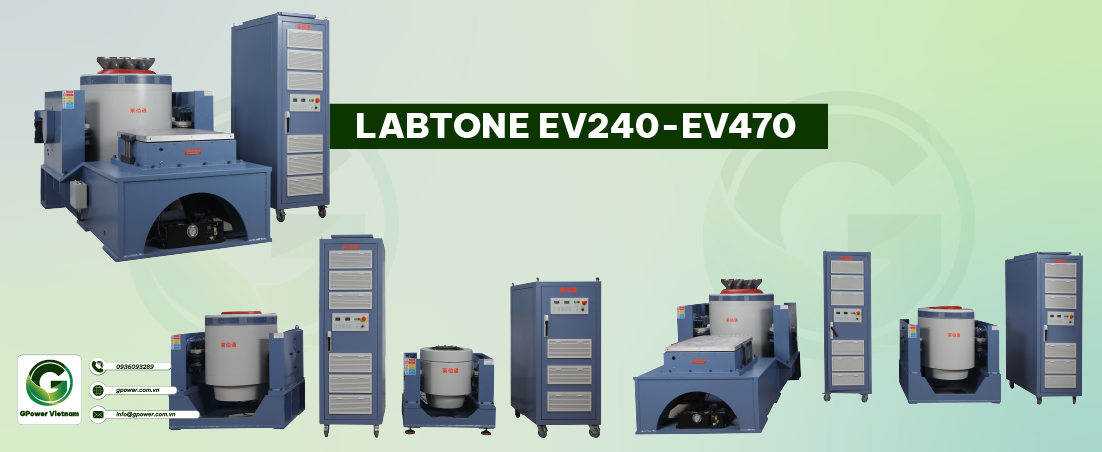

A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.

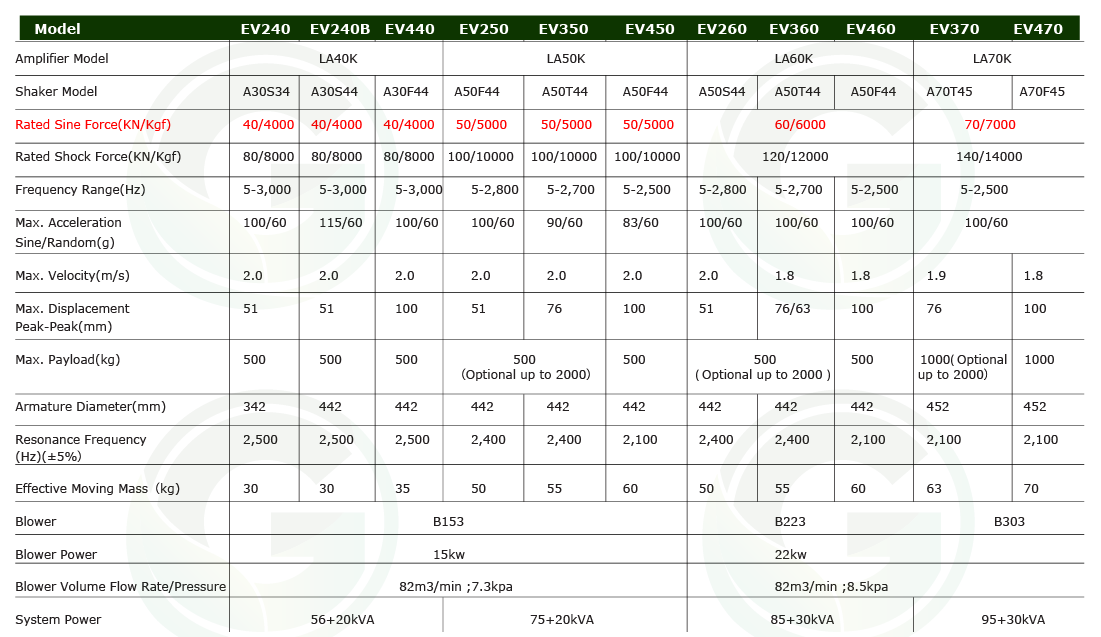

1. Technical Specifications of Vibration Test Machine
4000kgf -7000kgf
2. Applications of Vibration Test Machine
- - Automotive parts and systems – qualification testing
- - Electronic assembly, computer equipment testing
- - Avionics and military hardware testing
- - Satellite component testing
- - Product and package testing
- - General stress screening
3. Selection of Shaker Model
To choose a suitable vibration test system, the most important thing is to know the exciting force required to perform the vibration test. To evaluate and calculate the exciting force, the following data should be specified:
- - Frequency (frequency range)
- - Maximum Acceleration
- - Maximum Displacement
- - Maximum Velocity
- - Specimen Mass and Fixation
The specimen fixation is selected based on the upper limit of test frequency and specimen size, either vertical expansion platform or horizontal slip table. Specimen mass is needed to evaluate the required exciting force for vibration test.
4. Labtone Service
4.1. Pre-Sales Service
1) Technical consultation: test method, laboratory planning and suggestion.
2) Equipment selection: selection scheme, FAQ.
3) Product testing scheme.
4) Customer communication and progress report.
4.2. After-Sales Service
1) Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2) Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3) Technical support: special paid services are provided according to customer’s needs.
