The Dynamic Pitch Simulator can be installed on existing sled test systems with only minor test lab modifications.
The pitch motion is highly accurate and repeatable due to the fixed-path guidance, eliminating the need for expensive control systems.
Most pitching profiles can be simulated accurately using the seven standard guides provided with the pitch simulator system. The system selects the correct guides for the test and electronically positions them prior to the test.
With fixed-path guides, the horizontal pulse is the only tuning variable; sled pulse and pitch performance are quickly achieved using existing sled pulse tuning algorithms.

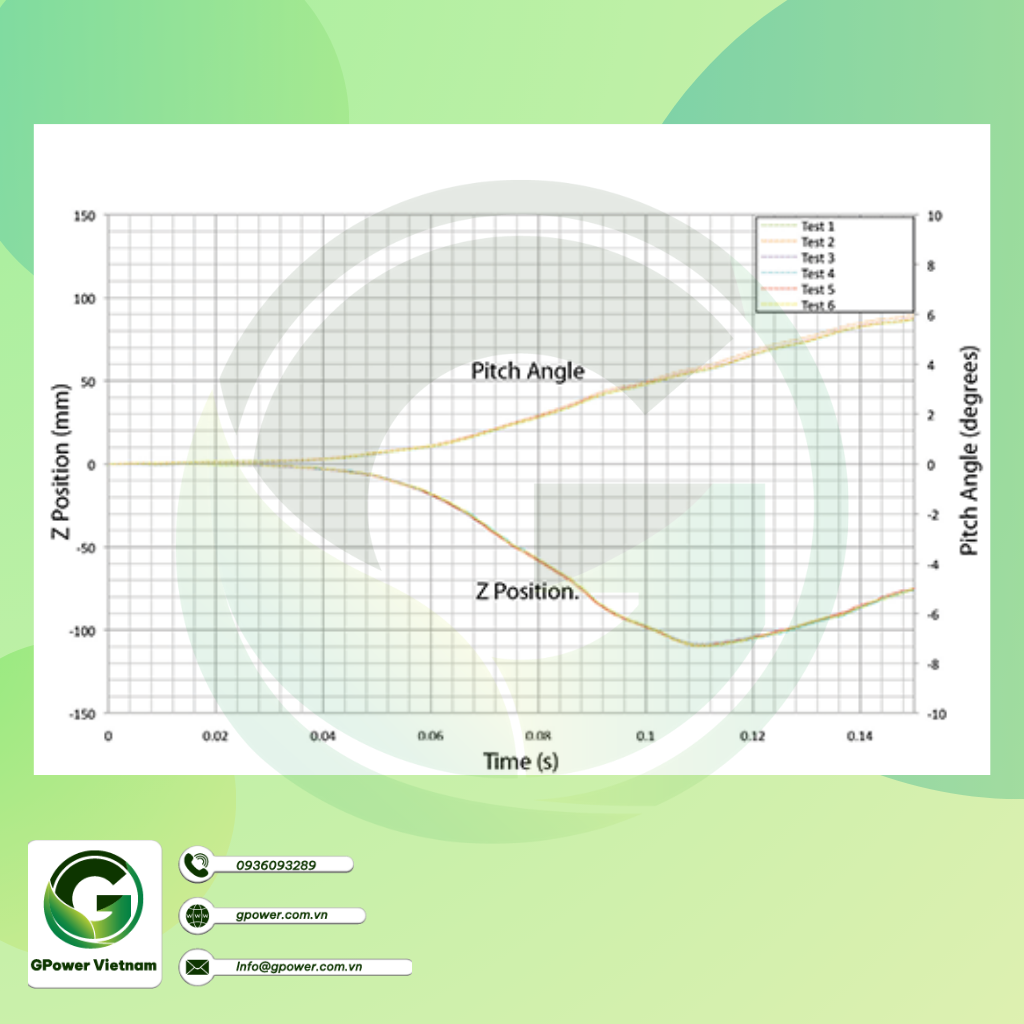

Six independent tests overlaid to illustrate excellent repeatability

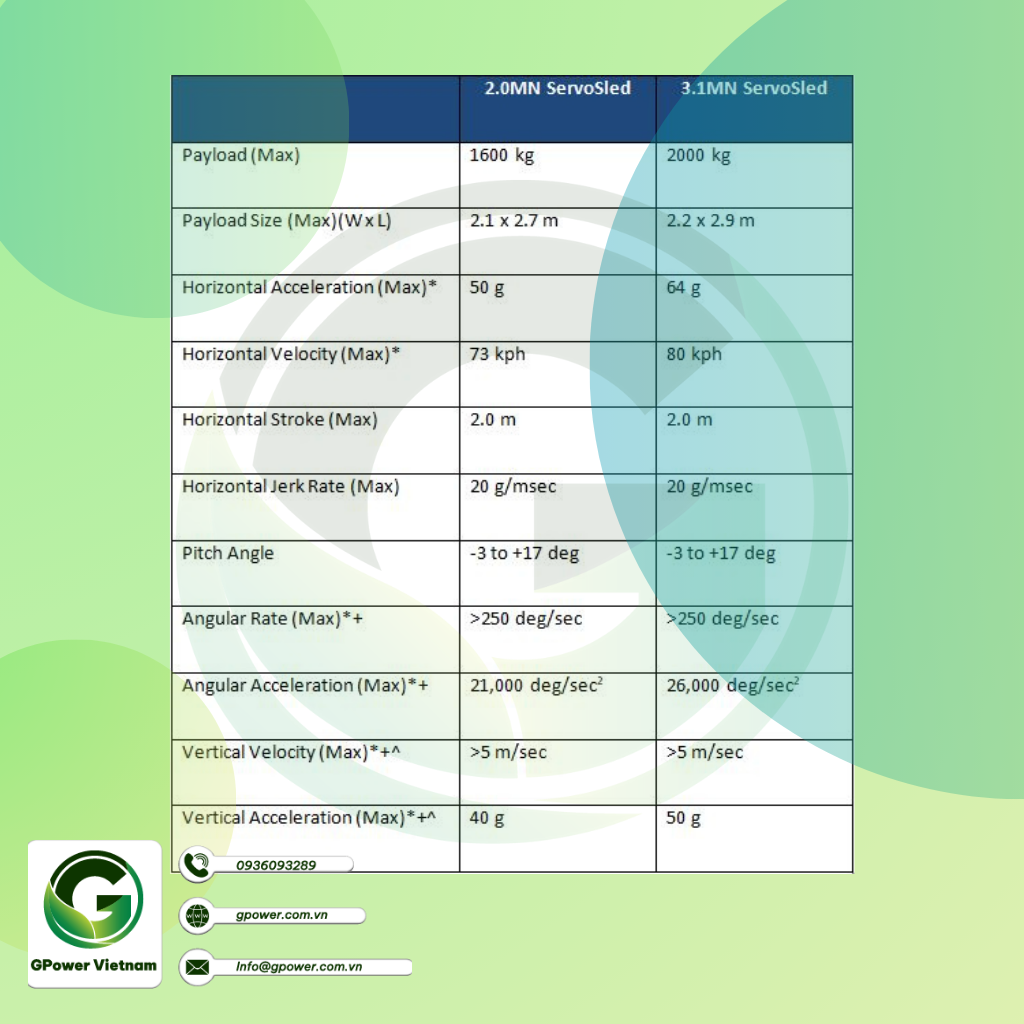

Performance Specifications
Note: any performance data contained herein is operating-condition dependent.
* At 1,000 kg payload.
+ Values are a function of guide geometry and are limited only by the structural strength of the system.
^ Measured at center of gravity.
