Introduction
Combination unit for manual and semi-automatic adjustment.
The flammability tester is suitable for performing standard-compliant burning tests according to the following standards: UL 94, ASTM D635, D3801, D4804, D5048, D4986, IEC 60695-11-3, IEC 60695-11-4, IEC 60695-11-10 (replaces ISO 1210), IEC 60695-11-20 (replaces ISO 10351), IEC 707 (partially); ISO 9772, ISO 9773
Features / Equipment
- - Robust combustion chamber with chamber walls made of blackened steel plates
- - Ignition source for test flame
- - Burner with shifting device and angle adjustment
- - Two access holes in the front panel below the viewing window for manual tracking and adjustment of the burner
- - Positioning system for specimen and burner for horizontal and vertical tests
- - Sample holder for six Bunsen burner tests
- - Flow meter and pressure regulator for gas integrated
- - Stopwatch with resolution 0.1 s, start by automatic burner position recognition
- - ASTM compliant flame calibrator with integrated temperature measuring module and exchangeable calibration sensors
- - Gauges for sample cutting and flame adjustment
- - Extraction fan, automatic interruption of gas supply when activated
- - Interior lighting
- - Test device on base frame / floor stand
Optional
- - Flame monitoring (safe guard)
- - Set of measuring devices and gauges for tests according to DIN EN 60695-11-10
- - Tightly closing shut-off damper for exhaust air spigots with motorised actuator
Alternatively
- - BK-UL 94 ECO (with manual adjustment / operation)

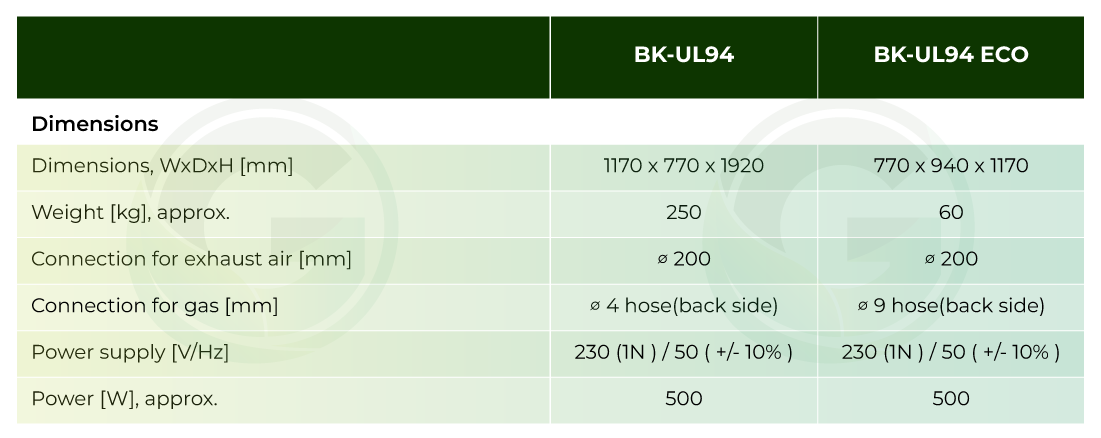

Technical data
