Introduction
Test to determine the horizontal burning rate.

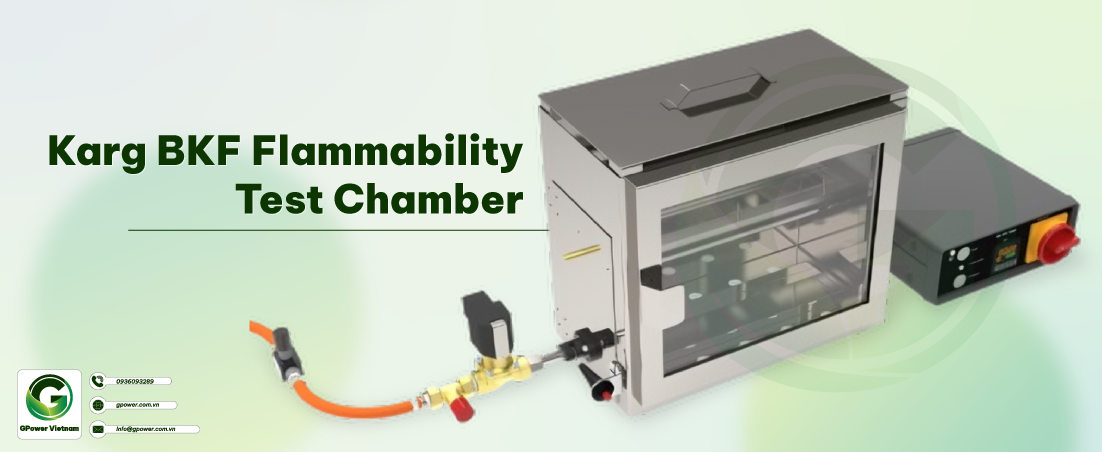

Fire test chamber BKF has been designed for evaluating the burning behaviour of interior materials in motor vehicles when exposed to a small igniting flame. The device is applicable for individual or combined tests of all materials and components of inside furnishing. Purpose of the fire tester is determination of horizontal burning velocity acc. DIN 75200 and other equivalent / harmonized international standards.
Features / Equipment
- - Flammability chamber (V4A) with hinged window
- - Specimen holder A
- - Specimen fixture B (cross-stringed with supporting wires)
- - Fine adjustment valve and gas hose
- - Collecting tray
- - Burner (natural gas, methane/ethane mixture, propane)
- - Flame safeguard
Optional
- - Sample holder TL 1010 (VW)
- - Exchangeable cover for test device according to DIN 75200 with thermocouple with display (e.g. Nissan, Toyota)
- - Control unit with timer for switching solenoid valve after preset interval
Test Standards & Regulations
DIN 75200, PTL 8501, DBL 5307.10, FMVSS 302, NF ISO 3795, TL 1010 (with optional fixture), GB 8410 (with optional fixture), ECE-Reg. No. 118 Annex 6

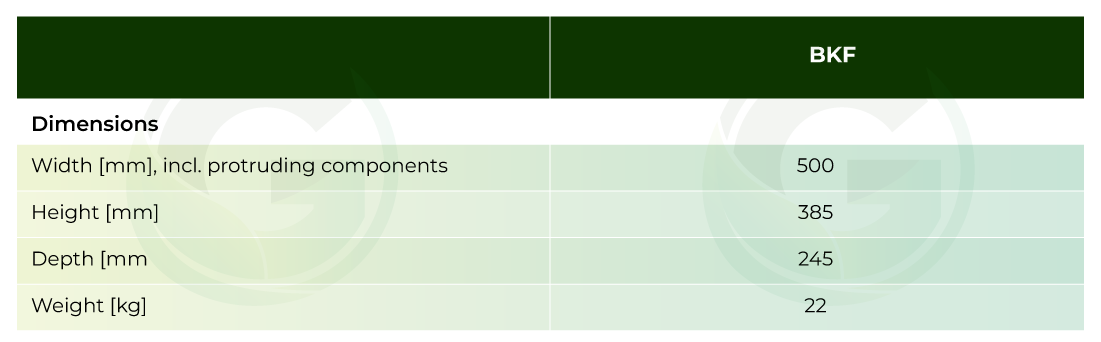

Technical data
