Explosion proof thermal cycling chamber is a customized environmental chamber with a double layer design and two test zones with separate temperature control. This double-layer chamber is specially designed for rapid rate temperature cycle test and can also be customized as temperature test chamber, temperature and humidity test chamber, etc.
Features of Explosion Proof Thermal Cycling Chamber
- - Explosion-proof pressure relief port: when the pressure exceeds the set value, the explosion-proof door will open automatically to unload the pressure inside the chamber to prevent damage to the equipment.
- - Explosion-proof chain: both sides of the door are equipped with explosion-proof chain.
- - Fire extinguishing device: 9L foam extinguisher, 1230 gas fire extinguisher.
- - Gas detection device: detection of H2, CO gas.
- - Safety protection device: various over-current and overload protection.
Standards of Explosion Proof Thermal Cycling Chamber
- - UN ECE: Regulation No. 100
- - UN 38.3: 38.3 Standards for shipping lithium batteries, either alone or as part of a device
- - UL 1642: Standard for Lithium Batteries
- - UL 2580: General guidelines for batteries in electric vehicles
- - GB/T 2423.1-2008 (IEC68-2-1) Test A: Low temperature test method
- - GB/T 2423.2-2008 (IEC68-2-2) Test B: High temperature test method
- - GJB 360.8-2009 (MIL-STD.202F) High temperature life test
- - GJB 150.3-2009 (MIL-STD-810D) High temperature test method

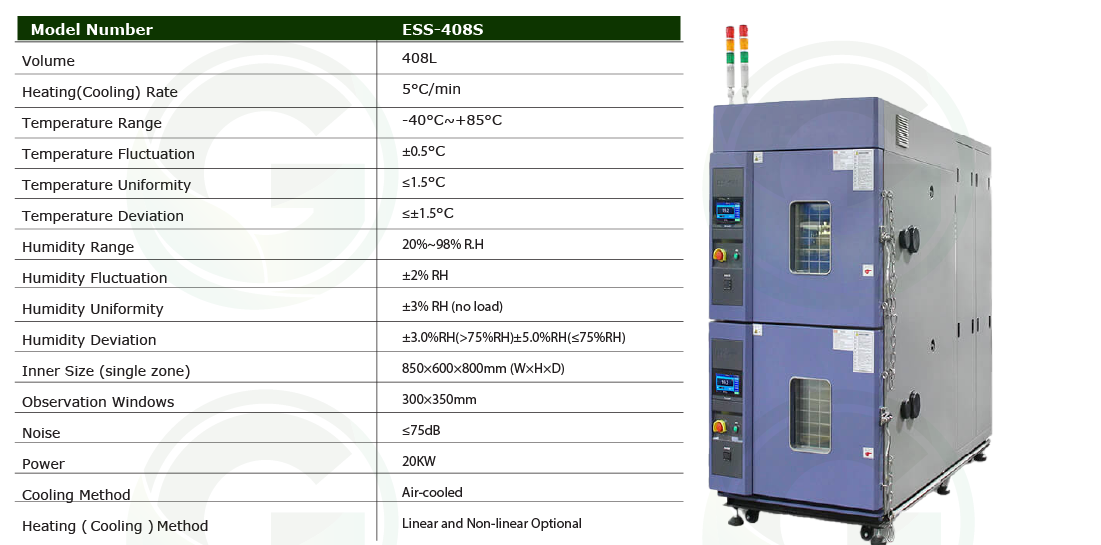

Specifications
Contact GPower Vietnam for detailed information about the product and accompanying warranty and maintenance services.
