Lighting systems are also one of the most important systems in vehicle safety testing. Seattle Safety is one of the world's leading suppliers of advanced lighting systems and components.
1. LED Systems
IES SyncLamps
LT-LED
- Synchronization with high speed video (Up to 10,000 fps)
- Cold light avoids heating of test articles
- 100,000 Lumen per lamp
- 128 individual LED’s with lenses per lamp
Available for:
- 3.1MN ServoSled
- 2.0MN ServoSled
- 1.4MN ServoSled
- Conversion Sled
2. Metal-Halide Systems
LT
Metal Halide Lighting
(HMI)
Metal Halide Lighting
(HMI)
- Adjustable lighting system length for larger coverage
- Lightweight boxes for easier installation and maneuverability
- X, Y, Z and tilt movement available for all systems
Available for:
- 3.1MN ServoSled
- 2.0MN ServoSled
- 1.4MN ServoSled
- Conversion Sled
- ServoSled 1000
- Lightweight – Lightweight boxes allow for lighting to be set in almost any mounting structure.
- Adaptable – Multiple boxes can be linked to illuminate longer test areas. Add motorized X, Y, Z or tilt ability for easy adjustment to light placement with the click of a button.

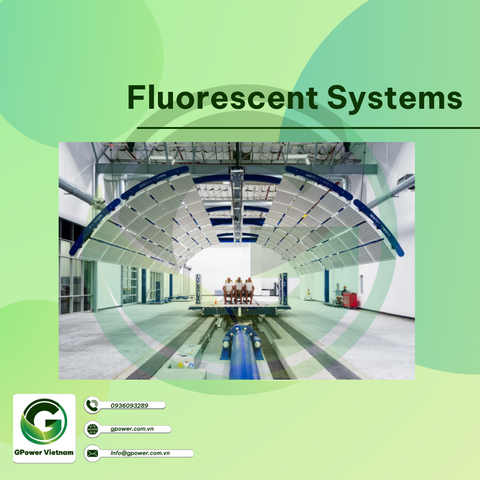

3. Fluorescent Systems
LT
Fluorescent Lighting System
- Optimum light spectrum and lamp efficiency
- Low infrared radiation – low heat to test article
- Non-specular lighting
- Soft shadows
- Simplified wiring
- Low power consumption
Available for:
- 3.1MN ServoSled
- 2.0MN ServoSled
- 1.4MN ServoSled
- Conversion Sled
- ServoSled 1000
The primary features of the Fluorescent lighting system include:
- Efficient – This system uses high efficiency T54HO lamps that exceed 90 lumens per watt and are commonly used in industrial settings, therefore easily accessible
- Cool Source – Fluorescents are a cool source with low infrared emissions as compared to Tungsten halogen and metal halide lamps which have extremely hot filaments and red hot quarts arc tubes respectively.
- Diffuse Lighting – Low source intensity lighting, as provided by fluorescent lighting, does not create intense point source lighting like other lighting styles providing less lens flare and bloom for cameras.
4. Tungsten System
LT
Tungsten Lighting System
- Tungsten-halogen lamps are incandescent light sources, which use a white-hot tungsten filament as the light source
- Achieve full intensity within 0.5 seconds after power on
- Can be restarted without delay after being turned off
Available for:
- 3.1MN ServoSled
- 2.0MN ServoSled
- 1.4MN ServoSled
- Conversion Sled
- ServoSled 1000
The primary features of the Tungsten Lighting System include:
- No Delay – No warm up or cool down periods, no waiting to reach full power; turn tungsten lights on and you’re ready to test. Many lighting systems require a period of time between being turned off and their ability to restart; Tungsten lights require no delay and can be turned on immediately after being turned off
- Quality – Tungsten lighting scores a 100 on the color rendering index (CRI),
providing superior lighting for photometric requirements.
