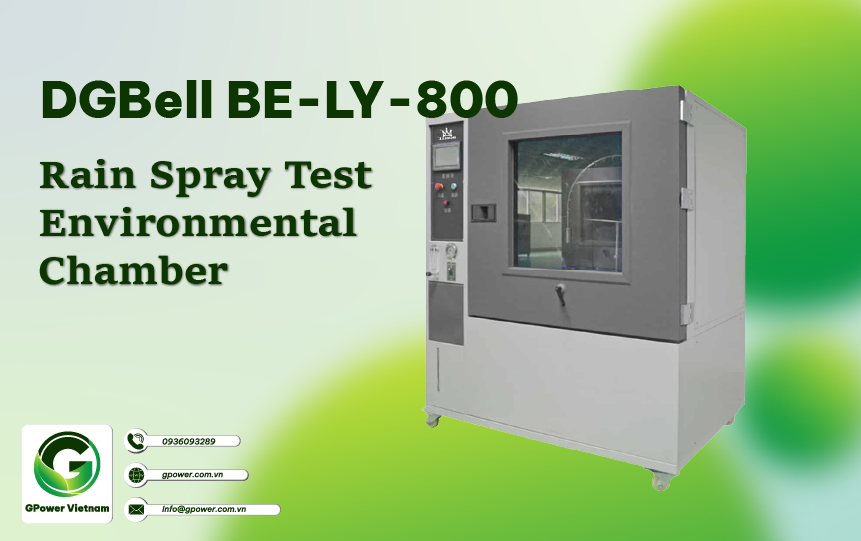

DGBell BE-LY-800 Rain Spray Test Environmental Chamber
Experience the advancement and intelligence of the DGBell BE-LY-800 Rain Spray Test Environmental Chamber - the optimal product in material testing. With its smart design and diverse features, this product provides a perfect solution for material manufacturers who want to evaluate the quality of their products under different environmental conditions.
With the ability to create different environmental conditions by raining, the BE-LY-800 ensures accurate evaluation of physical and chemical properties of materials, helping manufacturers ensure product quality in harsh conditions and increase the reliability of their products in the market.
Moreover, the product is equipped with intelligent features such as a multi-functional display screen, automatic rain spraying, and minimizing environmental impact, providing convenience and safety during use.
The BE-LY-800 is also designed to save energy, reduce costs, and minimize environmental impact, ensuring sustainability for the product.
With the support of the reputable partner DGBell, the product achieves the highest quality and receives fast and professional technical support.
Please contact GPower Vietnam - the representative of DGBell for the best technical consultation and support.
Product specifications
|
Model |
BE-LY-800 |
|
Test Space W x H x D(mm) |
800x800x800 |
|
External Dimension W x H x D(mm) |
1160x1640x960 |
|
Test Bench Speed(rpm) |
1-5(Adjustable) |
|
Turntable Diameter |
φ 300mm |
|
Turntable Load |
20KG |
|
Intermittent be Caught in Time |
15min/25min |
|
Speed |
5-10 s/rpm |
|
Water Ring Radius |
375mm,pipe diameter Φ16mm |
|
Nozzle Jet angle |
40°,90°,135°fix direction, water spray towards rotary center. |
|
Each Spray Hole Flow |
100±5 L/min(adjustable),flow display direct reading |
|
Water Spray Pressure |
200-400, a pressure gauge directly reading |
|
Test Time |
1-999,999min(adjustable) |
|
Safety Protection |
Power overload, short circuit protection, earthling protection, water protection and alarm-ring tip |
Contact GPower Vietnam for detailed information about the product and accompanying warranty and maintenance services.
