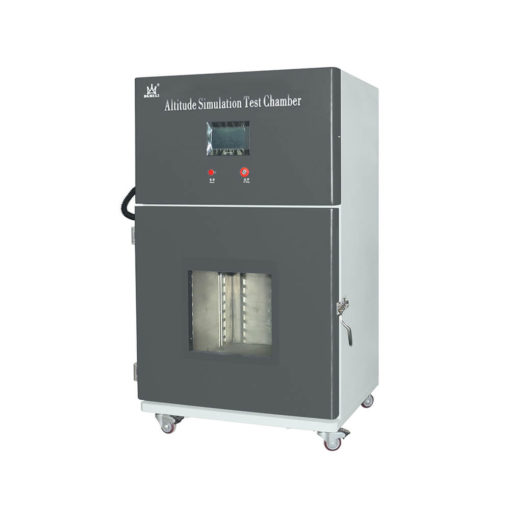

DGBell’s altitude simulation test chamber is suitable for battery low pressure (high altitude) simulation test, and all tested samples are at 11.6KPa. To test whether the battery will explode, catch fire or leak liquid.
Test requirement
- IEC 62133-2017
- UL 1642
- UN 38.3
Performance parameters
| Model | BE-8104 |
|---|---|
| Structure | All-in-one structure, door with explosion-proof lock and explosion-proof chain |
| Temperature Range | Room temperature |
| Display Mode | PLC touch screen display (7-inch touch screen) + remote control |
| Unit | Kpa |
| Internal Chamber Dimension | W600xD600xH600 mm |
| External Chamber Dimension | W940xD780xH1620 mm |
| Internal Chamber Material | Reinforced steel + stainless steel (thickness 6.0mm) |
| External Chamber Material | SECC steel plate, Fine powder paint coating (thickness 1.5mm) |
| Timing Range | 99H 59M 59S |
| Observation Window | 390 X 360mm(20mm thick tempered glass with explosion-proof film) |
| Air Pressure | Normal pressure ~5Kpa (Adjustable) |
| Controlling Mode | PLC touch screen display + remote control |
| Power Supply | AC 220V / 50HZ / 1KW |
| USB Interface | With USB interface, the test data can be output |
| Options | Video surveillance system, terminal device |
