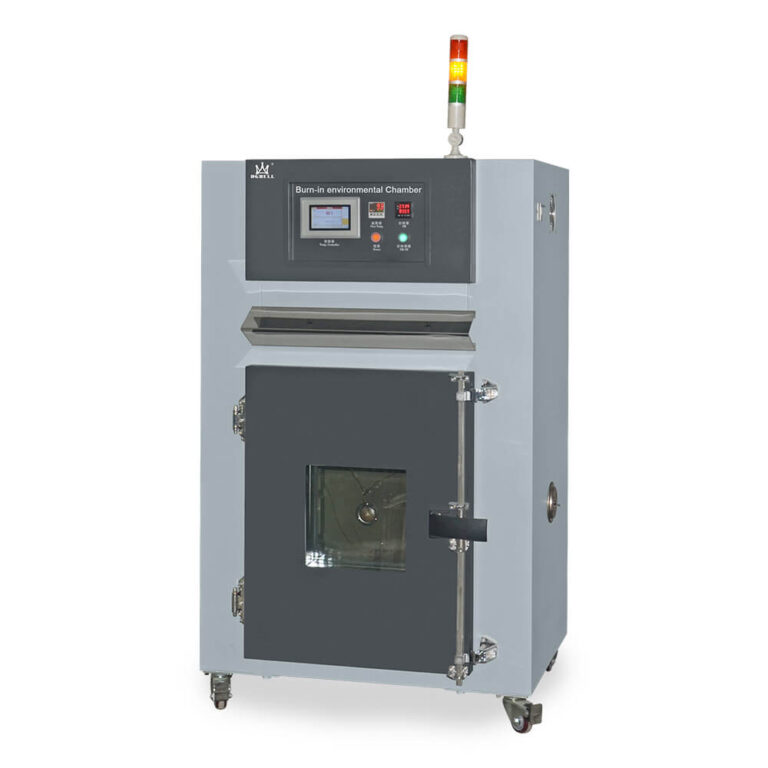

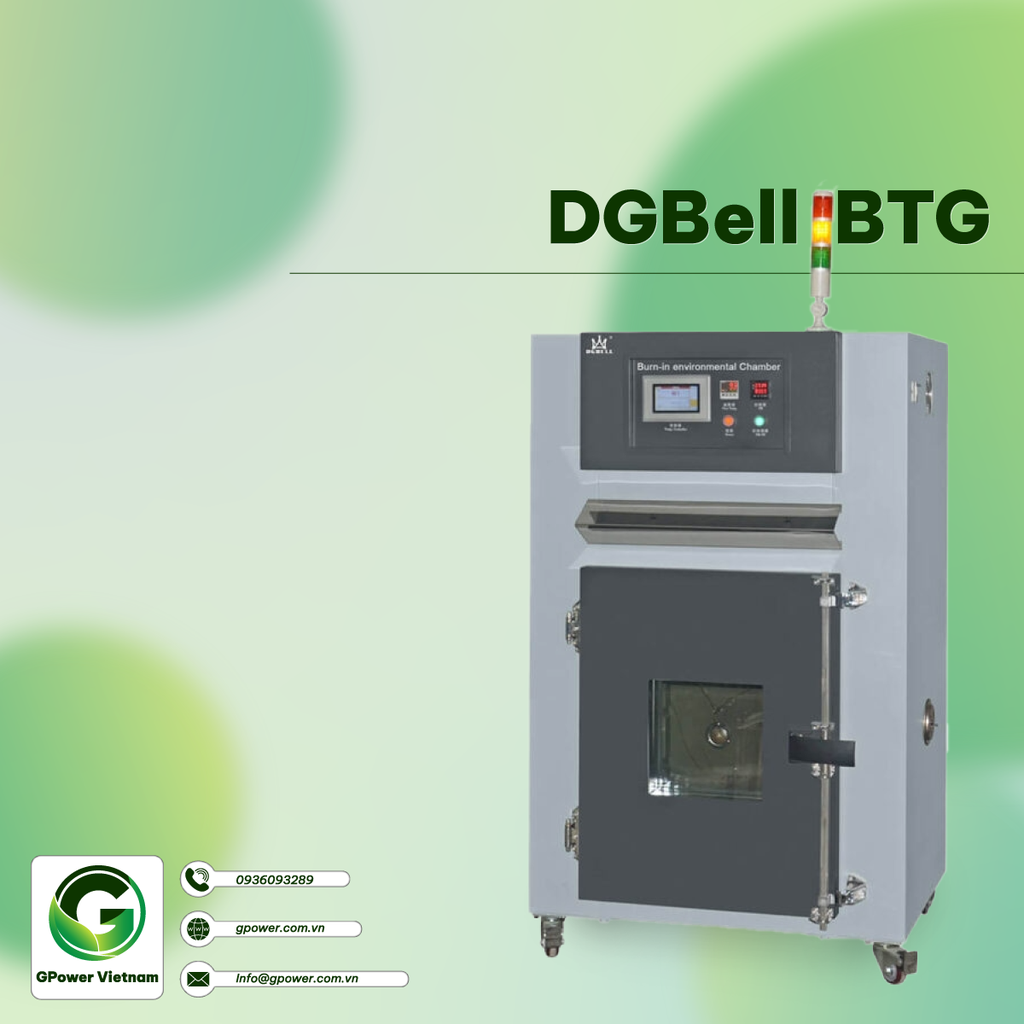

Burn-in Chamber Application
DGBELL’s Burn-in Chambers are widely applied for automotive parts, electronic and electric products, components and materials by constant high temperature reliability test. It can also be used for other objects that need to be tested for high temperatures, such as drugs, airplanes, etc. Our burn-in test chamber can be customized according to your requirements, if you have special needs, don’t hesitate to contact us.
Burn-in Chamber Advantage
- SUS#304 high temperature resistant stainless steel
- Fire-resistant, high strength glass fiber thermal insulation material
- Control system and control circuit all introduced with the famous brand
- Double sides cold-rolled plate electrostatic powder-coated material
Standard
- IEC 60068-2-2:2007
Performance parameters
| Model | BTG-072 | BTG-125 | BTG-270 | BTG-600 | BTG-1000 |
|---|---|---|---|---|---|
| Test Space | 450x400x400 | 450x400x400 | 600x900x500 | 1000x1000x600 | 1000x1000x1000 |
| W x H x D (mm) | |||||
| External Dimension | 850x1000x850 | 900x1100x1000 | 1000x1300x1000 | 1200x1450x1100 | 1200x1400x1450 |
| W x H x D (mm) | |||||
| Temp. Range | Rt-250℃ (Optional for 500℃） | ||||
| Temp. Fluctuation | ≤±0.5℃ | ||||
| Temp. Deviation | ≤±1.5℃ | ||||
| Temp. Uniformity | ≤±1℃ | ||||
Controller
| Display | TFT LCD |
| Input | Compatible for wet-dry bulbs PT100 (T/C, RTD, DCV) |
| Accuracy | 0.01% high precision sampling |
| System Capacity | 10 programs, 100 segments for each program |
| Operating Mode | Fixed value/ Programmable running mode |
| Output Method | PID+SSR/SCR automatic bidirectional synchronous output |
| Start pre-set | Equipment starting can be pre-set. |
| Communication Interface | compatible with protocols (RS485, Modbus, etc.) |
