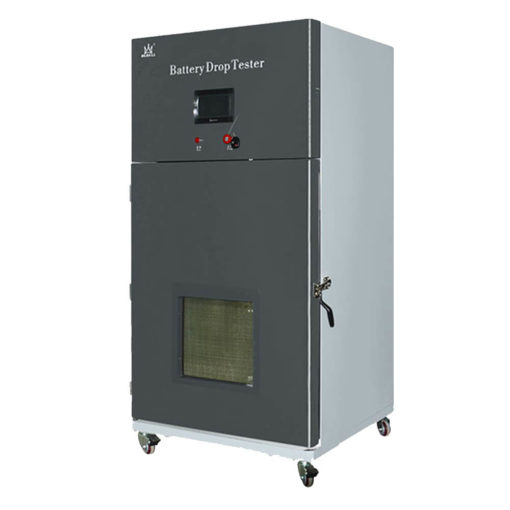

Application of Battery Drop Test Chamber
DGBell’s battery drop test chamber is used to test the drop impact performance of large, heavy-duty packaging products by simulating real surface, edge, and corner differences. It is mainly used to test the anti-drop ability of packaging products during transportation, loading and unloading, thereby improving packaging design.
Test requirements
Performance parameters of DGBell BE-8108
| Model | BE-8108 |
|---|---|
| Drop Height | 300～1500mm (Adjustable) |
| Testing Method | Free fall |
| Test Loading | 0～5kg |
| Specimen Max. Dimension | W200 x D200 x H200mm |
| Machine Dimension | W700 X D900 X H1800mm |
| Motor Power | 90W |
| Control Mode | PLC touch screen (7-inch touch screen) + Remote control |
| Internal Material | SUS 304# Stainless steel |
| External Material | 1.5mm thickness Cold plate |
| Falling Method | Pneumatic drop |
| Lifting Method | Electric |
| Power Supply | 220V 50Hz |
| Safety device | Fully enclosed explosion-proof device |
| Pressure | ＞0.3Mpa |
| Drop Panel Size | W600 x D700 x H10mm (solid steel), hardwood, cement board (optional) |
| Observation Window | 390 X 360mm (20mm thickness tempered explosion-proof glass) |
| Data Output | Test data can be output by USB flash disk directly . |
| Safety Protection | Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch |
| Options | Temperature acquisition system, voltage acquisition system, video monitoring system |
