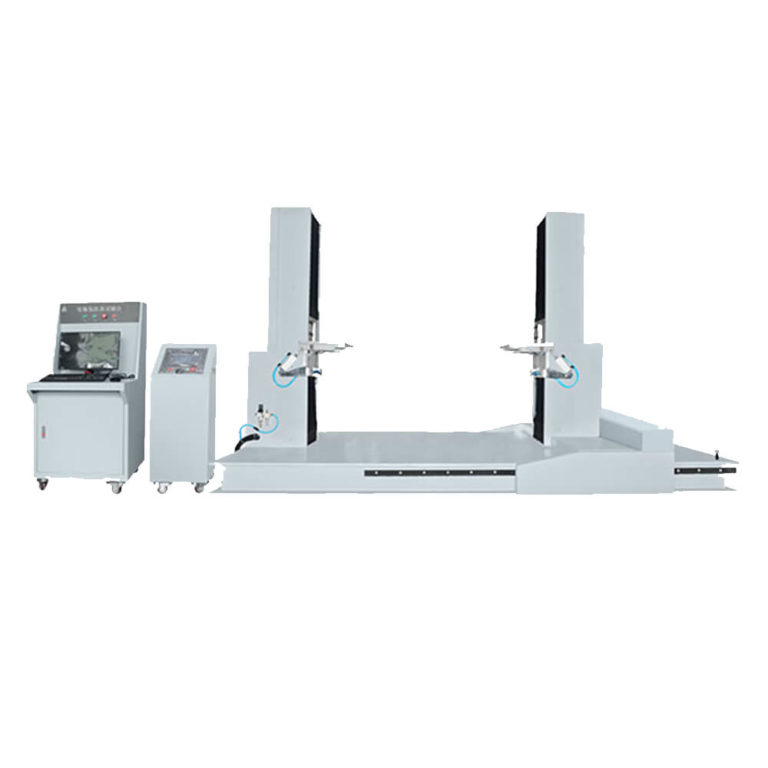

In a world where battery technology is continuously advancing, testing and ensuring battery quality has become immensely important. The DGBell BE-8206-1500 Battery Impact Testing System is an indispensable tool in your battery quality verification process.
This product not only provides a reliable battery testing solution but also ensures the highest level of accuracy.
Key Features of Battery Pack Drop Tester
- - High Quality: The equipment is manufactured by DGBell, a leading brand with a high reputation in the testing industry.
- - Outstanding Accuracy
- - User-friendly: The user-friendly control panel allows for easy setup and control of the testing process.
- - Absolute Safety
- - High Durability
- - Time-saving and Increased Productivity: With the ability to handle a large number of batteries simultaneously, it saves time and enhances productivity.
- - Flexibility: The DGBell Battery Pack Drop Tester allows for adjusting test parameters, enabling customization according to specific needs.
The BE-8206-1500 offers superior features compared to other similar products in the market. It is an optimal solution for battery testing. Investing in this equipment not only ensures product quality but also saves time and improves efficiency.
Relevant standards requirements of Battery Pack Drop Tester
- - Test object: battery pack and system
- - Test procedure: The test object is most likely to fall in the direction of actual maintenance or installation. If it is not possible to determine the most likely fall direction, fall in the Z-axis direction, and the battery pack will fall from the height of 1 m to the concrete floor and observe for 2 hours.
- - Accept standard: The battery pack or system has no electrolyte leakage, fire nor explosion.
Standard of Battery Pack Drop Tester
- - UL 2580
Product specifications of Battery Pack Drop Tester
|
Model |
BE-8206-1500 |
|
Drop Height: |
500~1500mm |
|
Displacement Accuracy: |
±5mm |
|
Max. Test Space: |
W3000×D2000×H1000mm(can be customized) |
|
Max. Load: |
1000KG or more |
|
Control Mode: |
PLC+Touch screen adjustment with computer remote control |
|
Testing Method: |
Face,corner dropping |
|
Drop Floor Material: |
Cement floor surrounded with channel steel |
|
Overall Dimension: |
W4500 X D2500 X H2700mm |
|
Machine Weight: |
Approx 5000KG |
|
Power Supply: |
AC 380V Three Phase, 4.5KW |
|
Other Requirement: |
|
|
Explosion-proof device |
|
|
Lighting system |
|
|
Video monitoring system |
|
|
Strong smoke exhaust system |
|
|
Misoperation-proof system |
|
Actual test of battery impact
Don't let the quality of your product be compromised by poor testing equipment. Contact us today to learn more about how the DGBell BE-8206-1500 Battery Impact Testing Set can help you ensure the highest quality batteries.
Let us assist you in elevating the quality of your products to new heights!
