The BINDER drying and heating chambers belong to the category of temperature and environmental testing chambers (climate chambers). BINDER drying chambers fully meet the requirements of a scientific testing chamber in every aspect: outstanding temperature accuracy, uniform heat distribution, and residue-free drying.

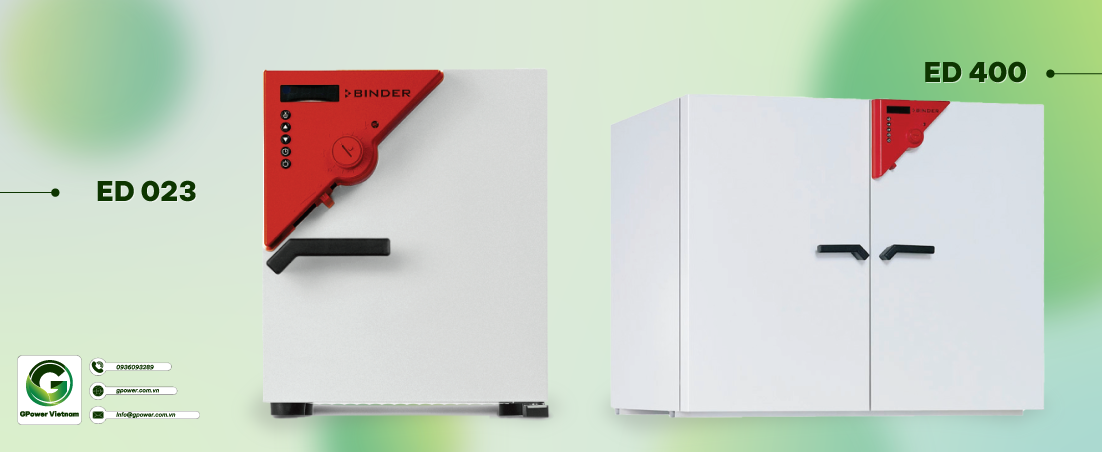

1. Series ED: Drying and heating chambers Classic.Line with natural convection
1.1. Introduction
The strengths of a ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
1.2. Features
- - Temperature range: room temperature +5 °C to 300 °C
- - Natural convection
- - Adjustable exhaust air flap
- - Controller with timer functions
- - Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- - RS 422 interface (only with ED400)

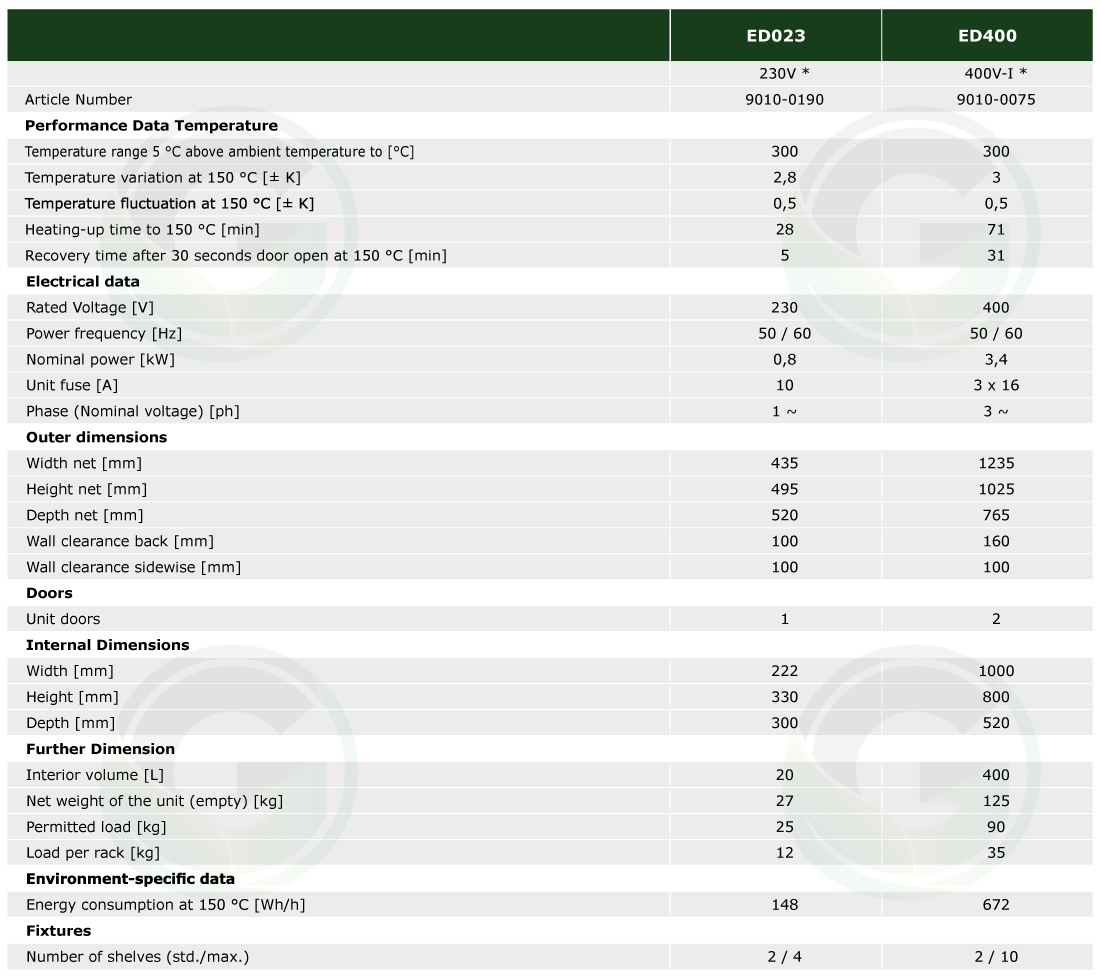

1.3. Technical data

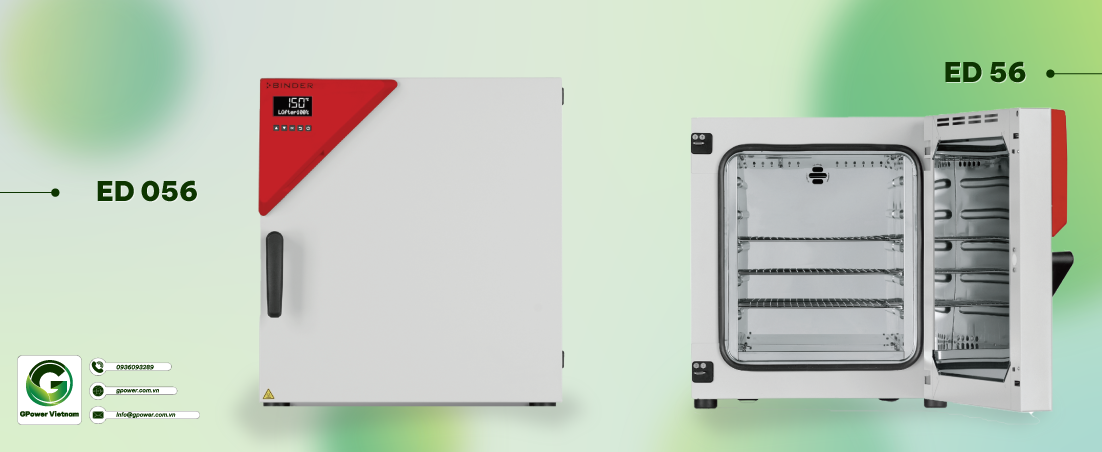

2. Series ED: Drying and heating chambers Avantgarde.Line with natural convection
The advantages of the ED series drying chamber are unquestionable, the features of the new drying and heating oven include:
2.1. Features
- - Temperature range: ambient temperature +5 °C to 300 °C
- - High temperature accuracy thanks to APT.line™ technology
- - Natural convection
- - Controller with LCD display
- - Electromechanical control of the exhaust air flap
- - 2 chrome-plated racks
- - Units up to 115 L are stackable
- - Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
- - Ergonomic handle design
- - USB port for recording data

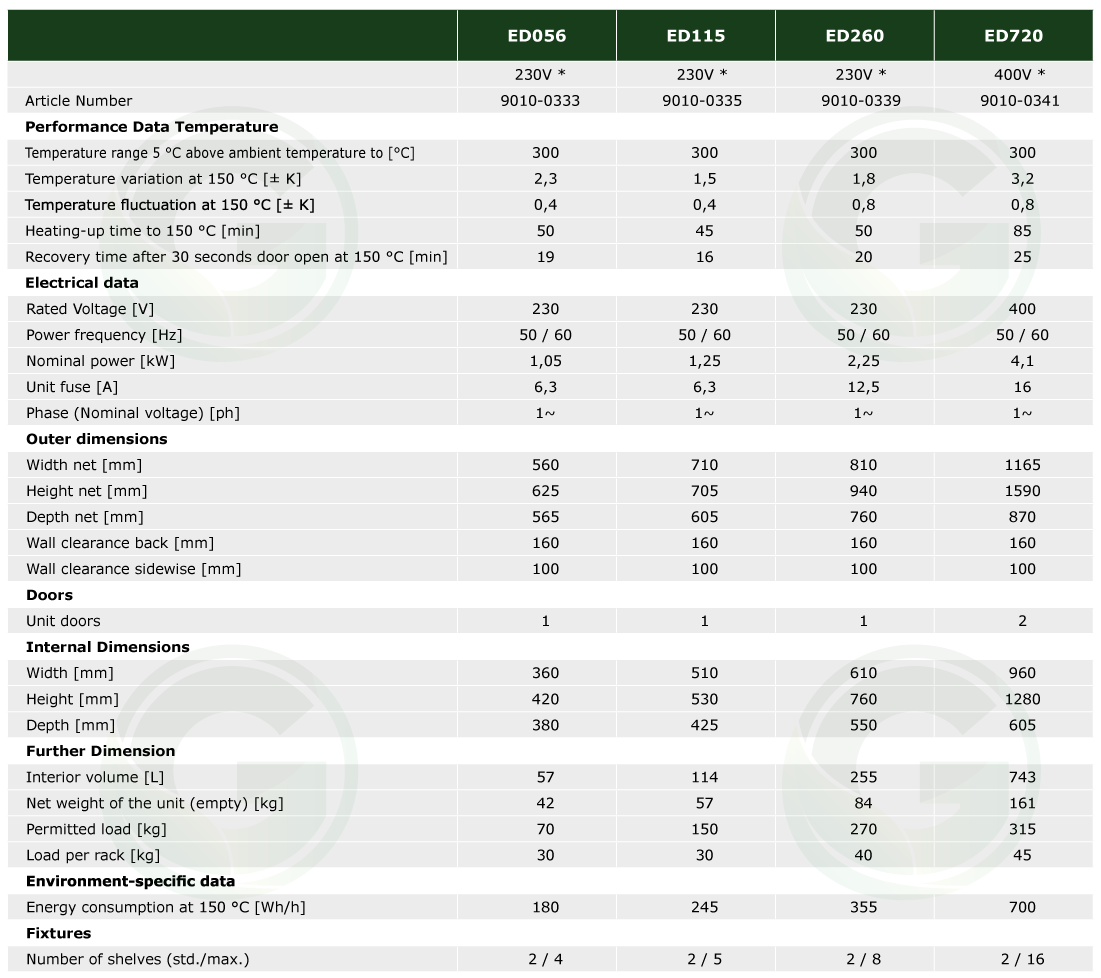

2.2. Technical data

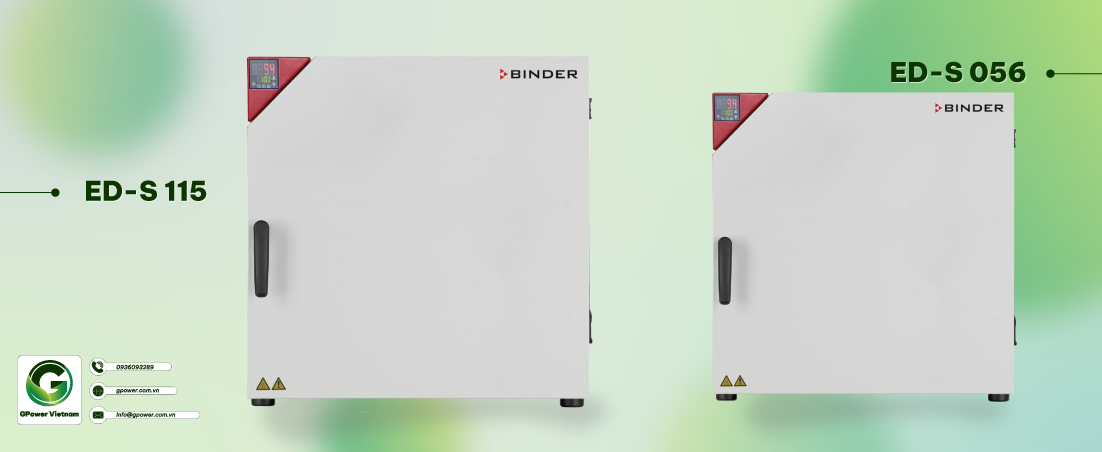

3. Series ED-S: Drying and heating chambers Solid.Line with natural convection
The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.
3.1. Features
- - Temperature range: ambient temperature plus 7 °C to 250 °C
- - APT.line™ preheating chamber technology
- - Natural convection
- - Adjustable exhaust air flap
- - Controller with timer function
- - 1 chrome-plated racks, incl. shelf supports
- - Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm

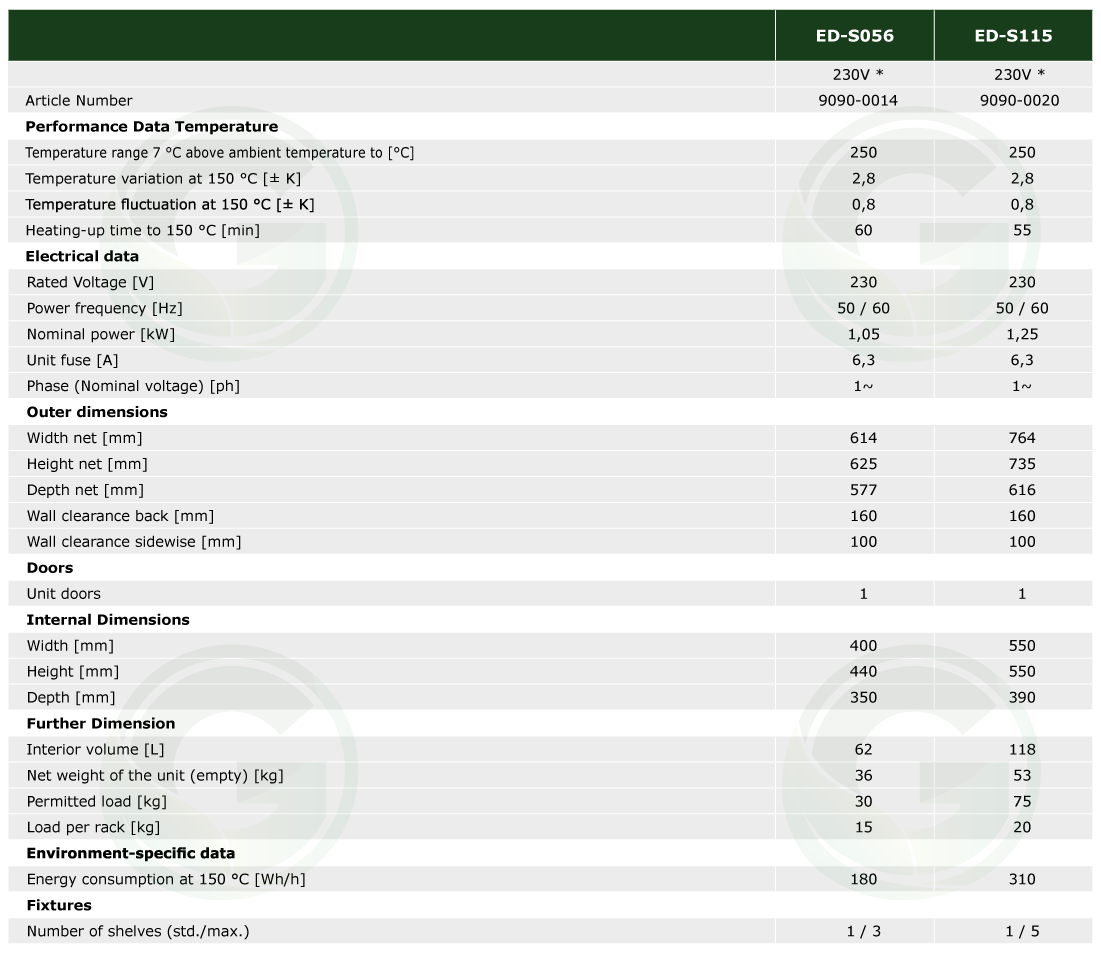

3.2. Technical data
The BINDER ED and ED-S drying chambers not only meet all the requirements of a testing chamber but also offer a wide range of diverse applications. The components of the drying chamber are easily cleanable, helping to minimize the risk of contamination. The flexibility of this chamber series allows for precise adjustments to meet the specific requirements of each project. All these features make the BINDER drying chamber a versatile choice for various applications in industry, research, and science.
