BINDER Heating and Cooling Chambers are environmental simulation chambers for all heat and cold tests.

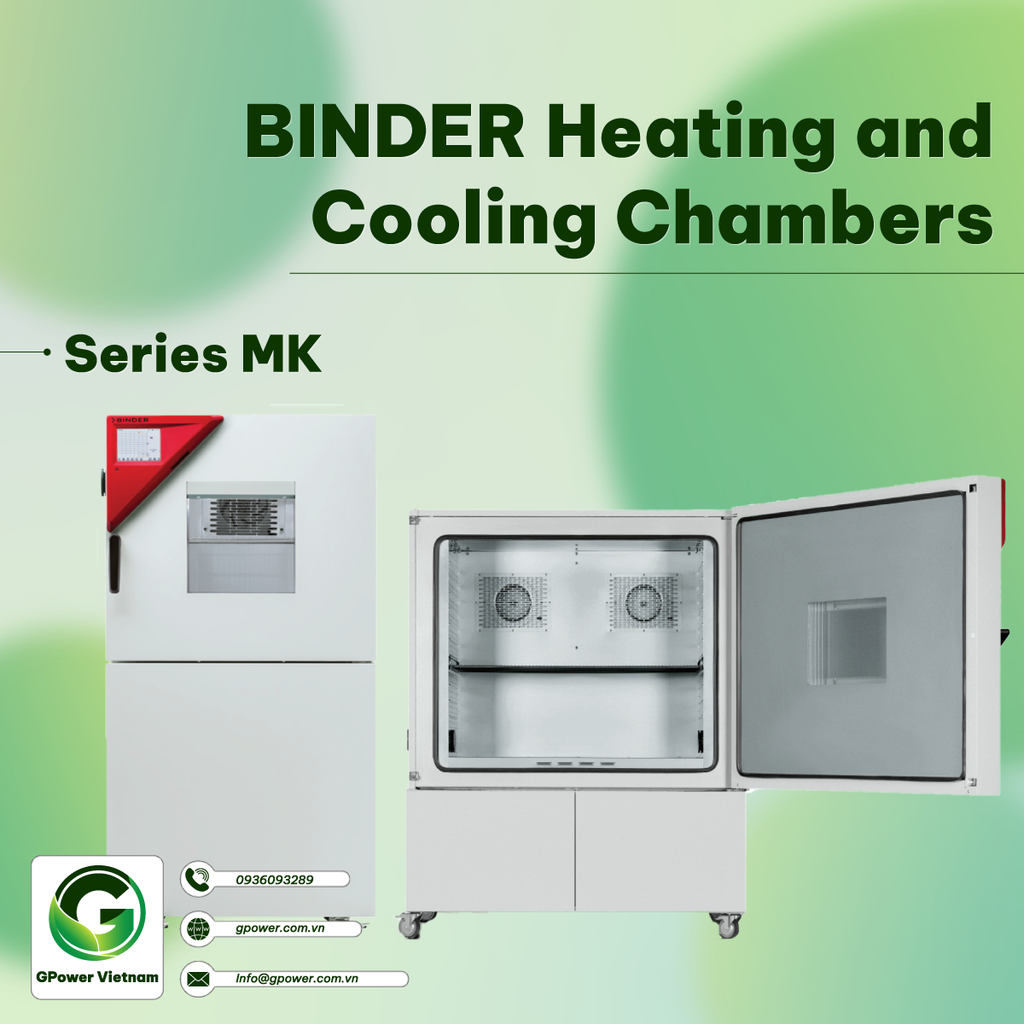

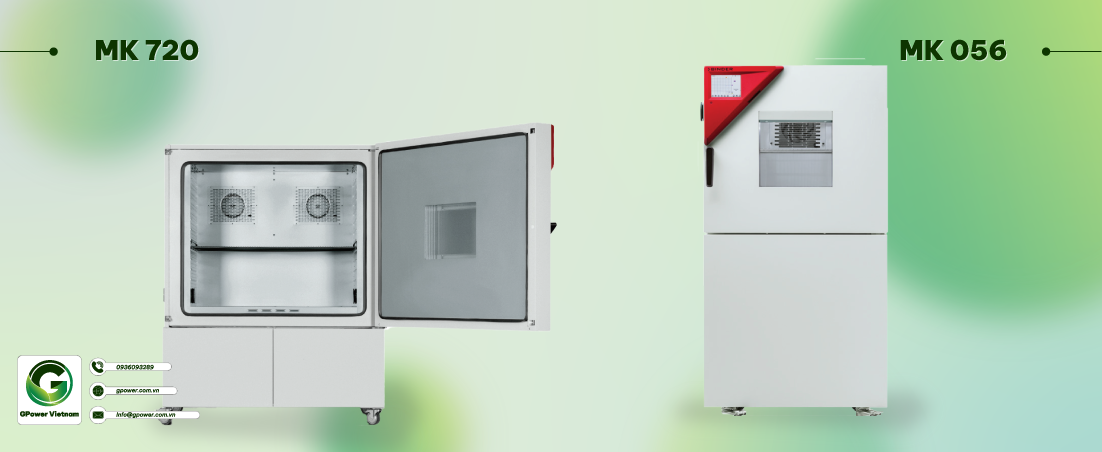

1. Series MK: Heating- /Cooling chambers for rapid temperature changes
The MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.
1.1. Features
- - Temperature range: -40 °C to 180 °C
- - APT.line™ preheating chamber technology
- - Programmable condensation protection for test material
- - Heated viewing window with LED interior lighting
- - APT-COM™ Basic Edition communication software
- - Troubleshooting system with visual and audible alarms
- - Intuitive touchscreen controller with time-segment and real-time programming
- - Access port with silicone plug (Models 56, 115, 240), 50 mm, left
- - 2 access ports with silicone plugs (Model 720), 80 mm, left and right
- - Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- - 4 castors, two with brakes, from 115 liters
- - Computer interface: Ethernet
- - Adjustable ramp function
- - Integrated chart recorder
- - Real-time clock
- - Door heating
- - Inner chamber made of stainless steel incl. 1 ss rack
- - CFC-free refrigerant R-452A
- - Cooling with compressor cooling unit

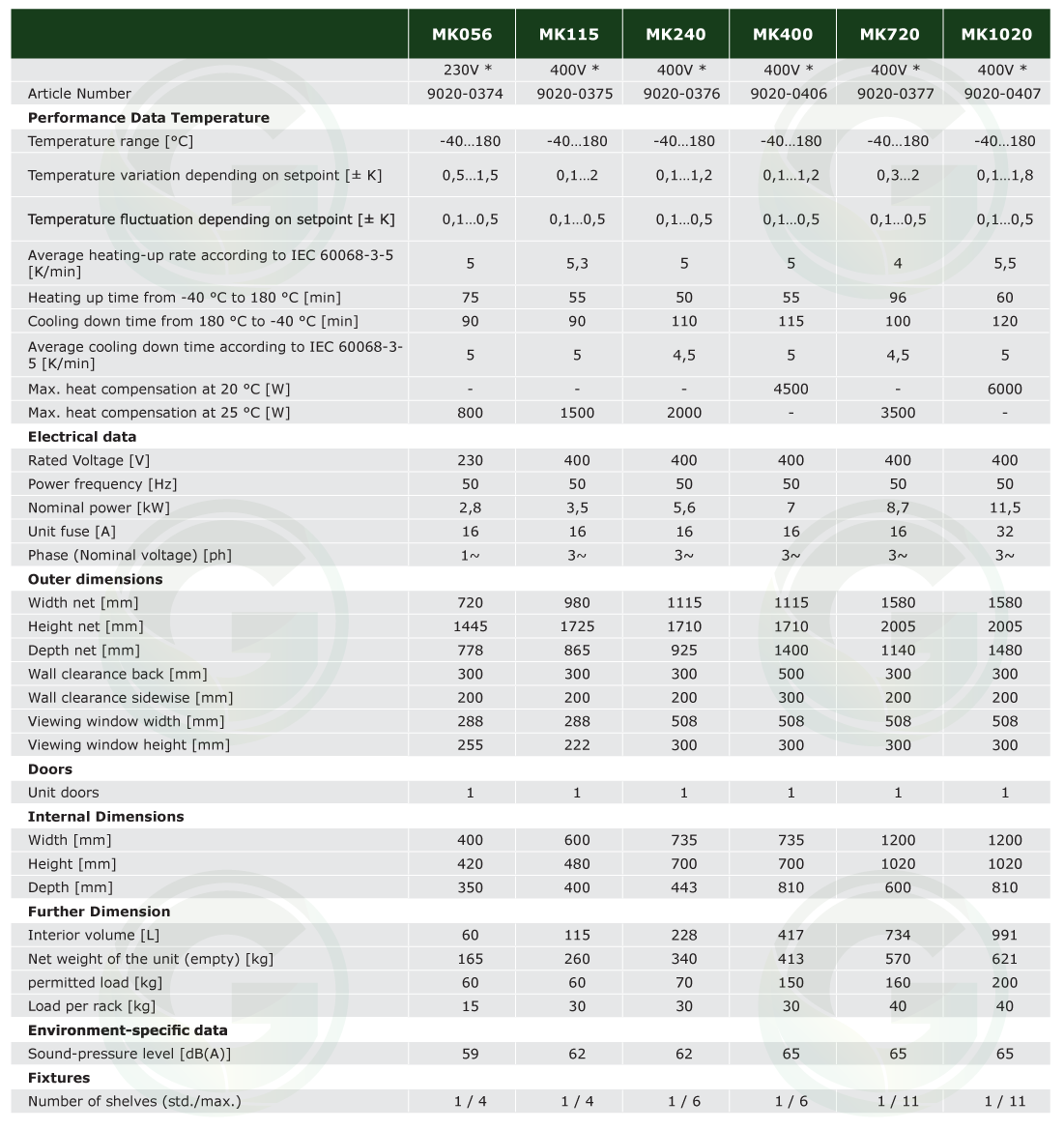

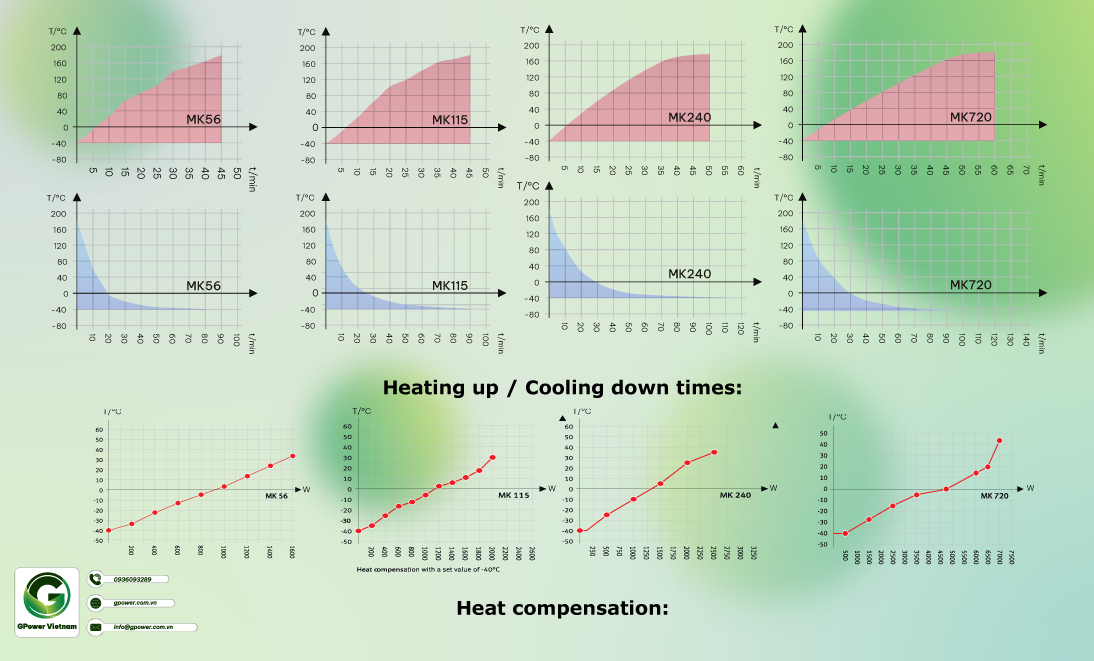

1.2. Technical data

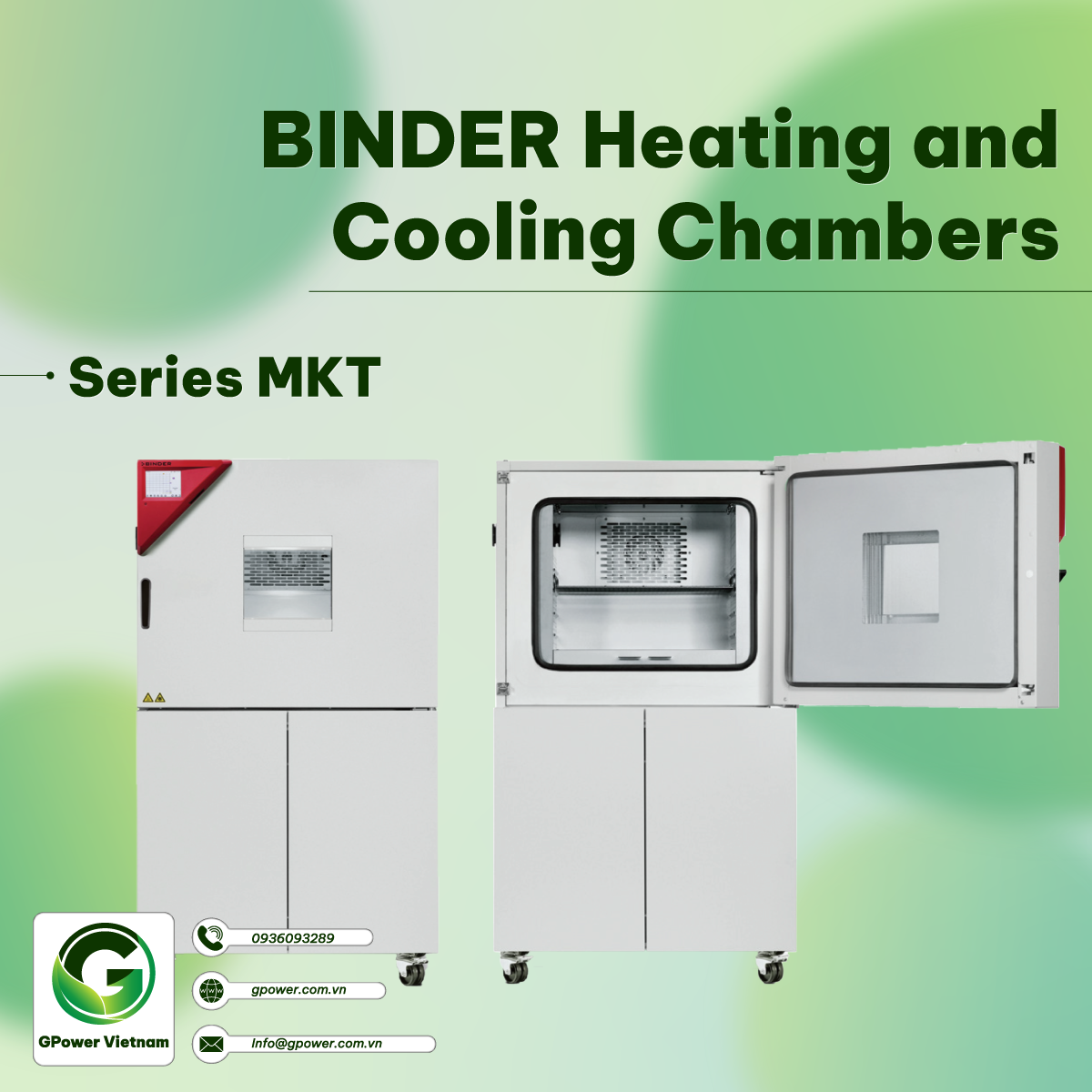

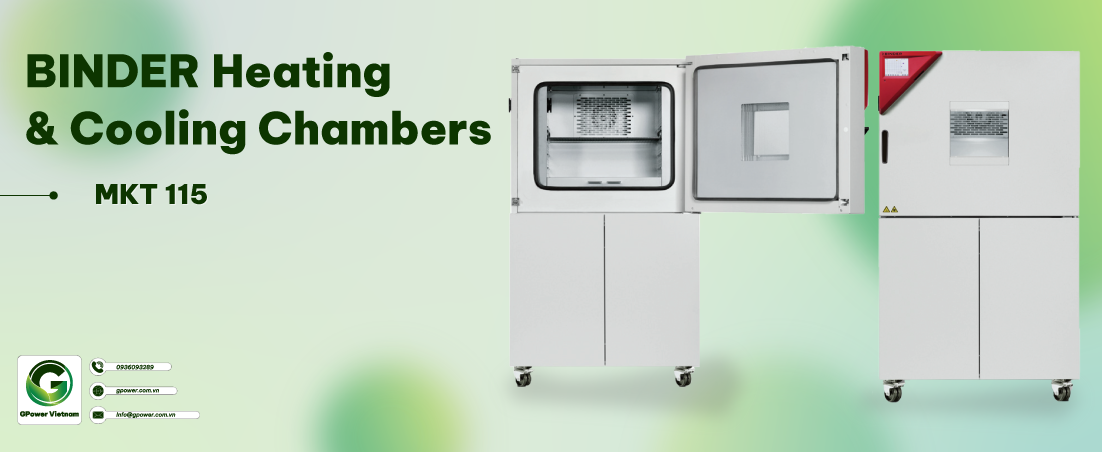

2. Series MKT: Heating- /Cooling chambers for rapid temperature changes with extended low temperature range
Temperature ranges between -70 °C and 180 °C, with the added benefit of natural simulation, are what make the MKT series so unique. At the same time, this environmental simulation chamber fulfills the very highest precision and performance requirements for cyclical temperature tests.
2.1. Features
- - Temperature range: -70 °C to 180 °C
- - 4 zero-voltage relay contacts
- - APT.line™ preheating chamber technology
- - Programmable condensation protection for test material
- - Heated viewing window with LED interior lighting
- - APT-COM™ Basic Edition communication software
- - Troubleshooting system with visual and audible alarms
- - Intuitive touchscreen controller with time-segment and real time programming
- - Internal data logger, measured values can be read out in open format via USB
- - Access port with silicone plug (Models 115, 240: 50 mm, left)
- - 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
- - Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- - 4 castors, two with brakes
- - Computer interface: Ethernet
- - Adjustable ramp function
- - Integrated chart recorder
- - Real-time clock
- - Door heating
- - Inner chamber made of stainless steel wiht 1 ss rack
- - CFC-free refrigerants R-452A and R-23
- - Cooling with cascade compressor cooling unit

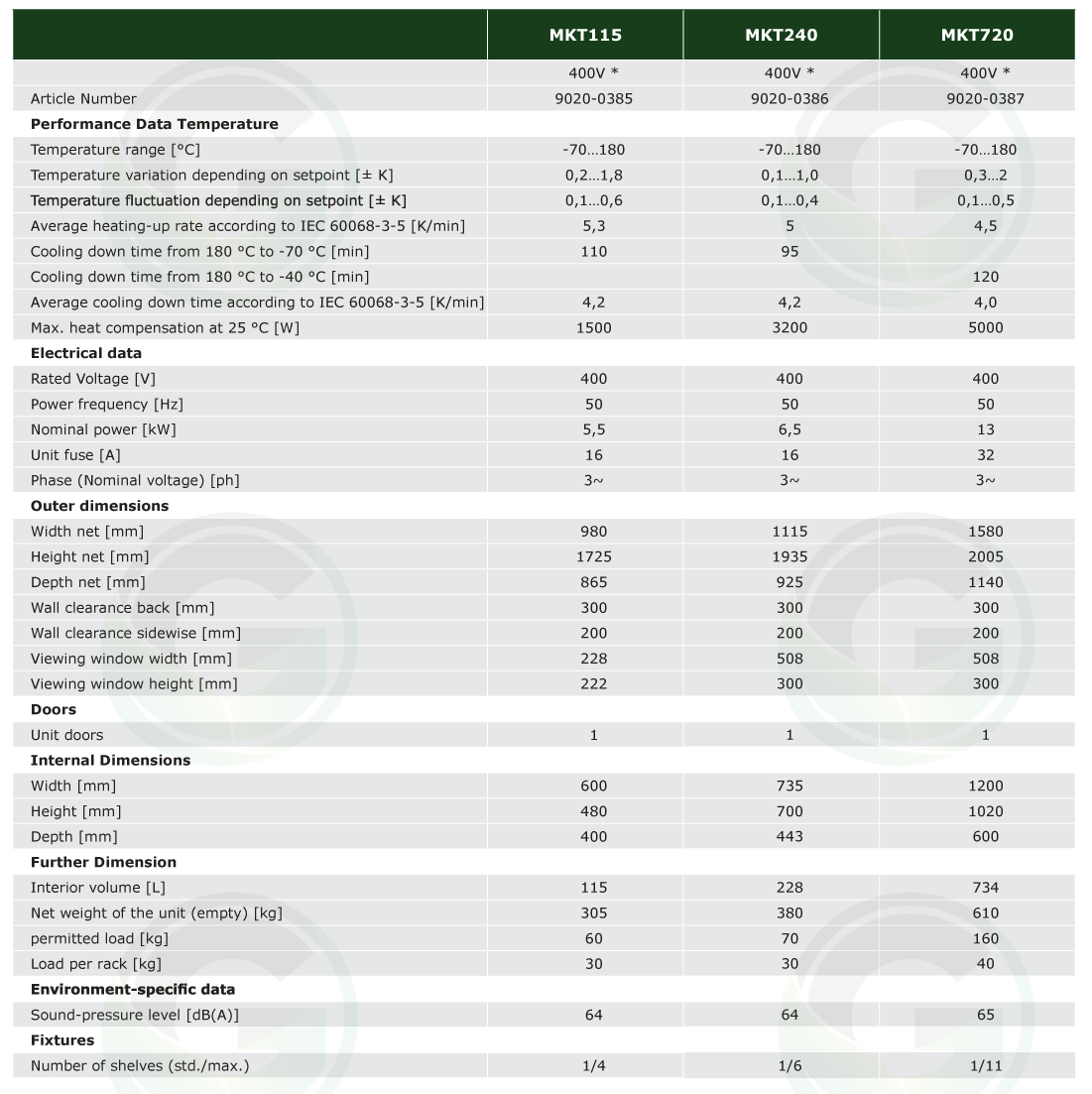

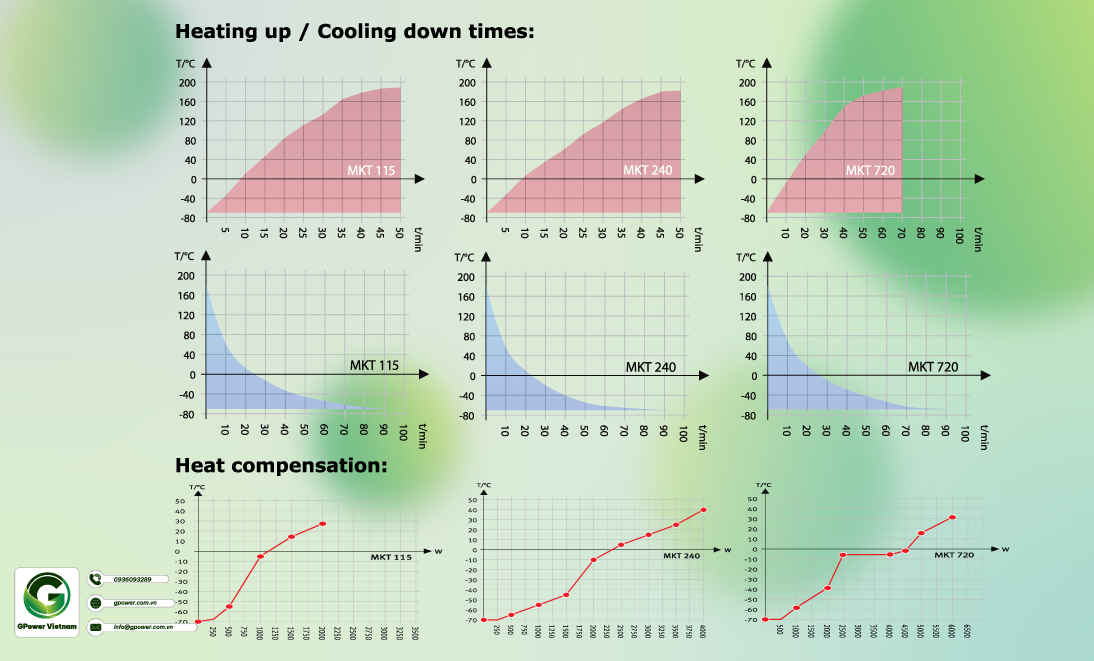

2.2. Technical data
Do you have questions about our products and services that are not answered on this website? Please contact GPower Vietnam for more detailed answers and solutions!
