BINDER LIT MK Battery test chamber

Benefits

• - Safety thanks to extensive protective measures
• - Homogeneous climate conditions thanks to APT.line™ preheating chamber
• - Extensive programming and data collection
• - Excellent overview of the test object thanks to large heated viewing window

Important characteristics

• - Temperature range: -40°C to +110°C

• - Class 2 independent temperature safety device when temperature is set to +120°C

• - Reversible stainless steel pressure relief flap installed in the middle on top of the unit

• - Enhanced door-locking mechanism with reinforced brackets

• - Monitoring of CO, H₂, O₂, and temperature in testing area atmosphere

• - Inertization equipment

• - CO₂ fire suppression

• - APT.line™ preheating chamber technology

• - Programmable condensation protection for samples

• - Heated viewing window with LED interior lighting

• - BINDER Multi Management Software APT-COM™ basic edition

• - Intuitive touchscreen controller with time-segment and real-time programming

• - Internal data logger, measured values can be read out in open format via USB

• - Access port with silicone plug, 50 mm, left

• - Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

• - Computer interface: Ethernet

• - 1 stainless steel rack, can be freely positioned

• - CFC-free refrigerant R-452A

• - Cooling with compressor cooling unit

• - The LIT MK 240 and LIT MK 720 chambers are suitable for EUCAR level 6

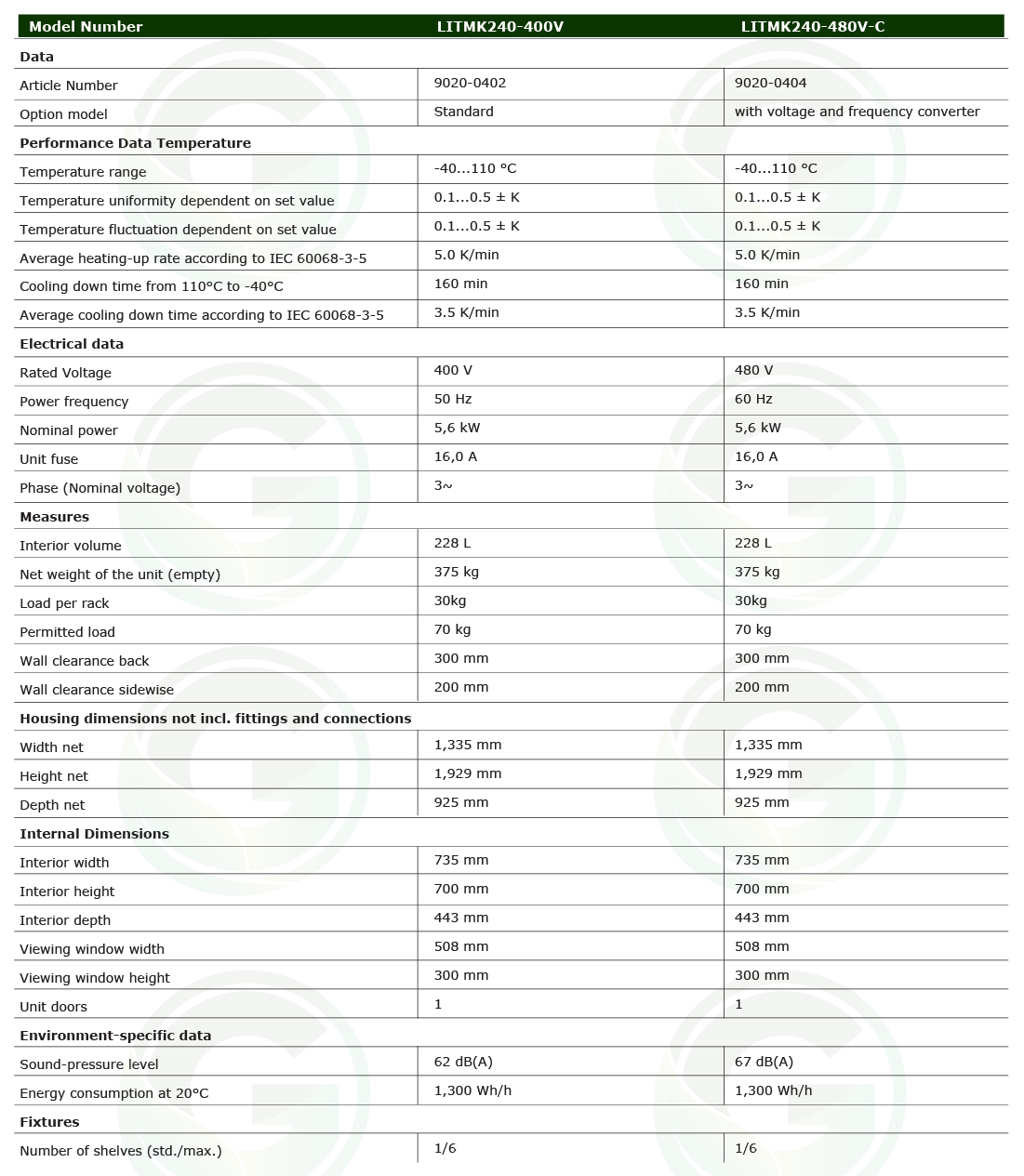

Technical specifications

Contact GPower Vietnam for detailed information about the product and accompanying warranty and maintenance services.
