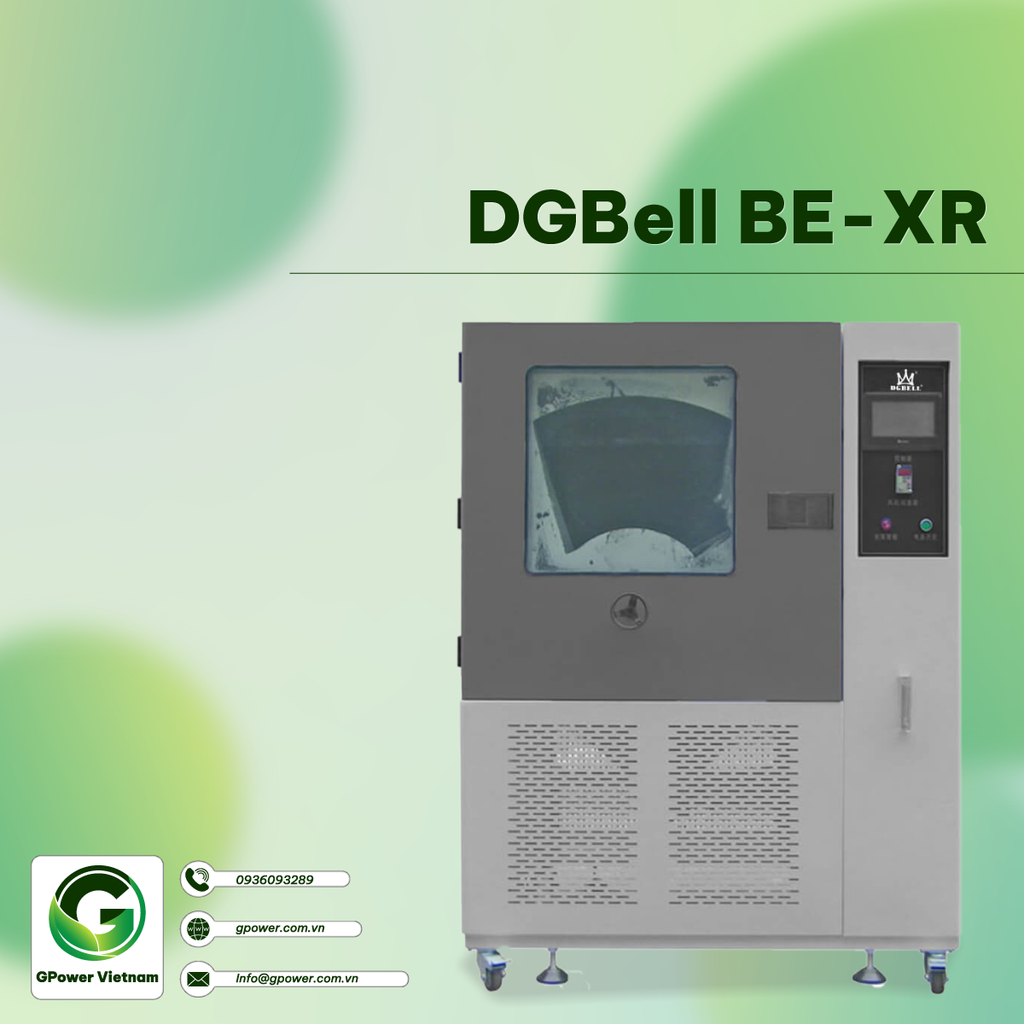

DGBell BE-XR Sand and Dust Test Chamber

Contact
Brand: DGBELL Product code: Updating

Sand and dust test chamber is suitable for all kinds of automotive parts dust-proof, dust resistance test. Test components including automotive lights, instrumentation, electrical cover, switch system, door lock, etc., and test its sealing performance. Besides, it also has view window with illumination.

Contact us for a consultation

0936093289 (Time: 8:00 am - 5:00 pm)

The harm caused by dust in life is huge, such as causing optical interference, interference with moving parts, reduced heat transfer efficiency, abrasion of moving parts, clogging of air filters, insulation damage ,... This is the reason why the DGBell BE-XR sand and dust test chamber was born.

Sand and Dust Test Chamber Application

It is suitable for all kinds of automotive parts dust-proof, dust resistance tests. Test components including automotive lights, instrumentation, electrical cover, switch system, door lock, etc., and test its sealing performance. Besides, it also has a view window with illumination.

Standard compliance

  • IEC 60598-1:1999

Performance parameters

Model

BE-XR-800

BE-XR-1000

Test Space

800x800x800

1000x1000x1000

W x H x D(mm)



External Dimension

1400x1600x950

1360x1840x1160 (For reference)

W x H x D(mm)



Metal Mesh Diameter

50um

Screen Stencil Diameter

75um

Talcum Powder Dosage

2Kg/m³

Air Velocity

No more than 2m/s

The Talcum Powder Amount

2Kg/m³

Internal Material

SUS 304 stainless steel

External Material

SECC steel plate, powder painted coating

Power Source

AC220V / 50Hz / 3.0KW

It is suitable for electrical and electronic products, automobile and motorcycle parts, seals in the sand and dust environment to prevent sand and dust from entering the seal and shell test. To test the performance of the use, storage, and transportation of electronic and electrical products, automobiles, motorcycle parts, and seals in sand and dust environments.

The technical requirements for the sand and dust test chamber are summarized as follows

  • - In order to ensure that the space of the test chamber filled with sand and dust can be fully circulated, the cross-sectional area of the test piece cannot exceed 50% of the cross-sectional area of the test chamber, and the volume of the test piece cannot exceed 30% of the effective volume of the test chamber.
  • - The sand and dust test chamber should be equipped with corresponding devices to maintain and check the dust concentration in the test chamber. In China, the measurement of sand and dust concentration currently generally uses the weighing method to calculate the sand and dust concentration. The sampling and weighing method is a more reliable and accurate method for measuring sand and dust concentration, but its disadvantage is that it takes a long time to measure and cannot continuously measure sand and dust concentration and output electrical signals. Therefore, some intelligent instruments and computers can be used to monitor the dust concentration in real-time. In this way, the measurement accuracy of the dust concentration can be guaranteed, and the real-time monitoring of the dust concentration can be solved.
  • - During the test, the measurement of wind speed, temperature and relative humidity should be carried out continuously, and the placement of the measuring sensor should avoid damage caused by the direct impact of sand and dust airflow, and some protective devices can be added to cover if necessary.
  • - For the sand and dust test chamber, the problem of dust leakage is one of the key technologies in the manufacture of the test chamber. Therefore, the sealing performance should be good, and the amount of dust leakage should meet the requirements of relevant environmental protection regulations, and it should not harm the health of personnel.
  • - The dust-containing airflow in the test chamber should be close to laminar flow before acting on the test piece, and the sand particles should be approximately uniformly suspended in the airflow. Due to the severe corrosive properties of sand, do not let sand flow through fans and air conditioning equipment.
  • - The sand and dust test chamber should have heating, cooling and dehumidification functions to ensure that the temperature and relative humidity in the sand and dust test machine meet the requirements of technical indicators. The inner wall material of the test chamber shall have the functions of wear resistance, corrosion resistance and anti-static.
