Humidity and temperature chamber is a type of environmental test chambers and the most basic climatic test. Many manufacturers will do temperature and humidity testing during product development. KOMEG humidity and temperature chamber has three temperature ranges (R, L, S) to choose from. The temperature ranges can meet testing requirements of most products. Generally speaking, the smaller the temperature range, the cheaper the price. Customers can choose the humidity and temperature chamber based on the actual testing requirements of the products. There’s no need to chase a wide temperature range, especially if you’re on a budget.
Materials of Humidity and Temperature Chamber
- - Exterior: high-quality cold-rolled steel plate, surface electrostatic powder paint
- - Interior: SUS304 stainless steel plate welding
- - Insulation layer: 100mm thickness rigid polyurethane foam insulation layer
- - Observation window: transparent electric heating film hollow tempered glass
Standards of Humidity and Temperature Chamber
- - IEC 60068-2-1 Test A: Low Temperature Test
- - IEC 60068-2-2 Test B: High Temperature Test
- - MIL-STD-202F High Temperature Life Test
- - MIL-STD-810D High Temperature Test
- - MIL-STD-810D Low Temperature Test
- - IEC 60068-2-3 Test Ca: Constant Heat Test
- - IEC 60068-2-30 Test Db: Damp Heat Alternative Test
- - MIL-STD-810D Damp Heat Test

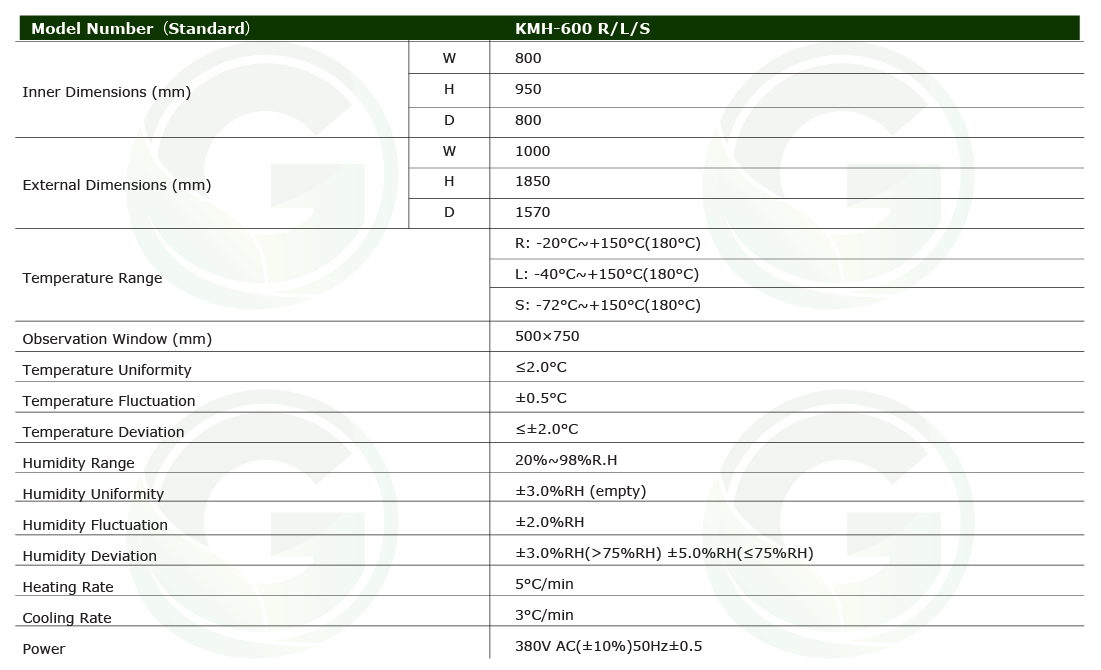

Specifications
Contact GPower Vietnam for detailed information about the product and accompanying warranty and maintenance services.
