Temperature Humidity Test Chamber Application
DGBELL’s Temperature Humidity Test Chamber is able to simulate a wide range of temperature and humidity environment conditions for testing various products and components. It is widely used for basic thermal cycling tests and accelerated stress tests. We provide 6 standard models, test cabinet from 80L to 1000L, customized size is also available.
The temperature humidity test chambers use imported temperature controllers to control temperature and humidity. Programmable controllers can be used to set a variety of parameters. The temperature and humidity are directly displayed digitally, and the operation of the constant temperature test chamber is convenient.
The equipment is accurately measured by a temperature and humidity sensor and controlled by an industrial programmable controller. It can automatically adjust the humidity in the temperature and humidity verification chamber, process the humidity verification data and print the results. With high control and test accuracy, it can provide continuous and repeatable humidity measurement.
It is suitable for product testing in scientific research units such as aerospace, metrology, petrochemical industry, pharmaceutical engineering, agricultural research, life science, electronic appliances, etc.
Features of Temperature Humidity Test Chamber
- Introduced Japanese and German refrigeration technology, Energy Saving 20%.
- Easy operation, available for both fixed value test and programmable test.
- Available for the customized design and provide various options to meet different test requirements.
- RS485 and RJ45 communications, available to computer remote control.
- Fog-free observation window and interior light to view product under test.
- Programmable
Temperature Humidity Testing Standard
- IEC 68-2-1 Environmental testing – Part 2: Test methods – Tests A: Cold
- IEC 68-2-2 Environmental testing for electrical and electronic products Test methods – Tests B: Dry Heat
- IEC68-2-3 Environmental testing for electrical and electronic products – Part 2: Testing method test Cab: Damp heat Steady state
- IEC 68-2-30 Environmental testing for electrical and electronic products – Part 2: Test method – Test Db: Damp heat, cyclic (12h+12h cycle)
- IEC 68-2-14 Environmental testing for electrical and electronic products-Part 2:Test methods-Test N: Change of temperature
- MIL-STD-810D High temperature test
- MIL-STD-810D Low temperature test
- MIL-STD-810D Damp heat test

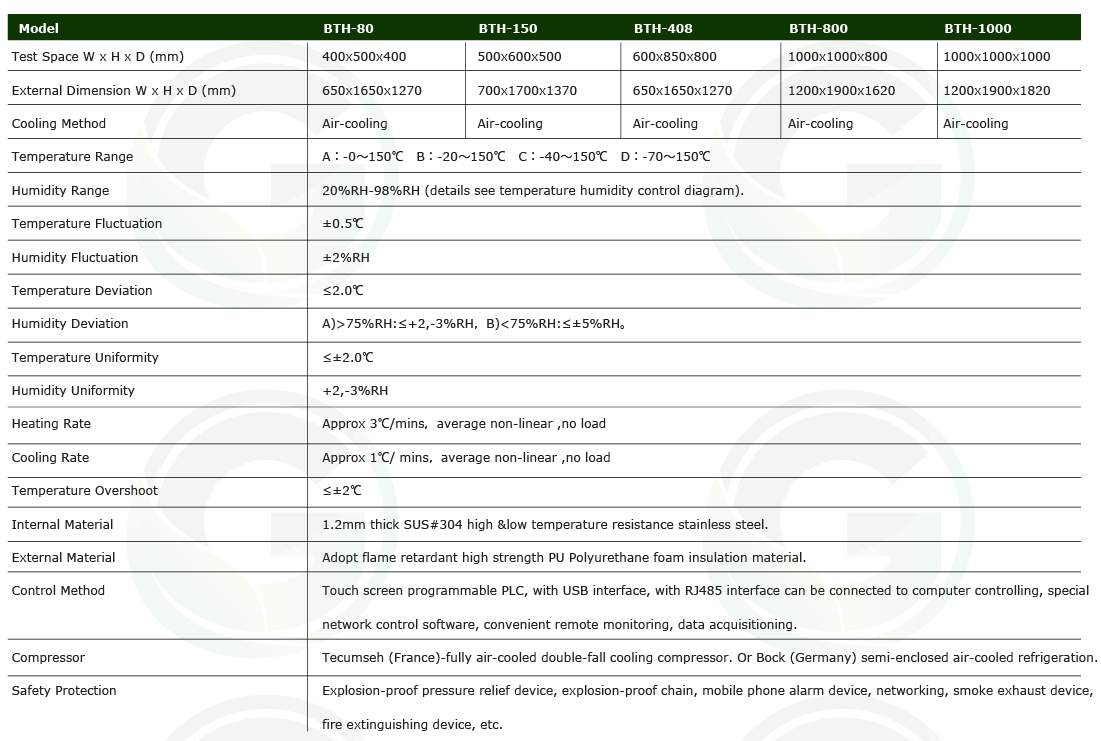

Temperature Humidity Test Chamber Parameters
