The BINDER drying and heating chambers belong to the category of temperature and environmental testing chambers (climate chambers). BINDER drying chambers fully meet the requirements of a scientific testing chamber in every aspect: outstanding temperature accuracy, uniform heat distribution, and residue-free drying.
BINDER drying chambers have many series: ED, ED Solid, FD, FED, FP, M.

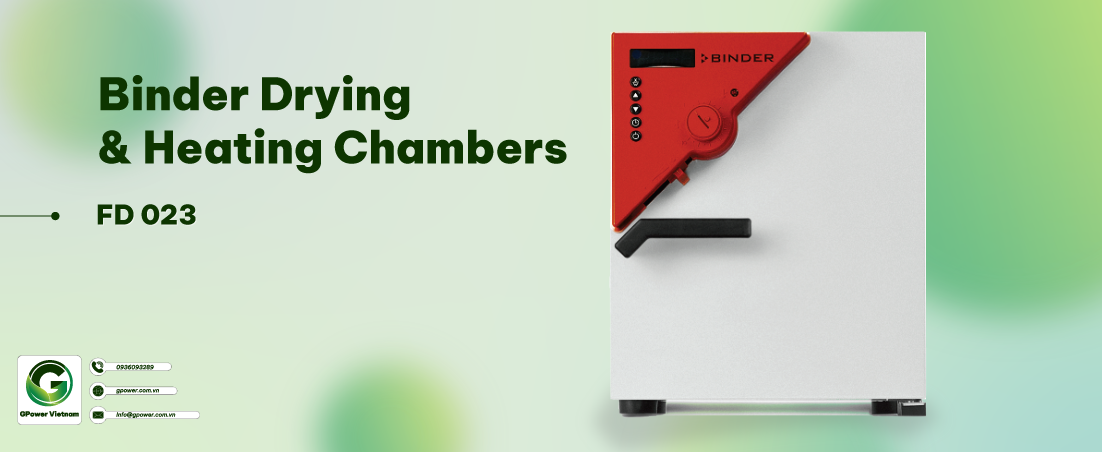

1. Series FD: Drying and heating chambers Classic.Line with forced convection
A FD series heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
1.1. Features
- - Temperature range: room temperature plus 5 °C to 300 °C
- - APT.line™ preheating chamber technology
- - Forced convection
- - Adjustable exhaust air flap
- - Controller with timer functions
- - 2 chrome-plated racks
- - Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

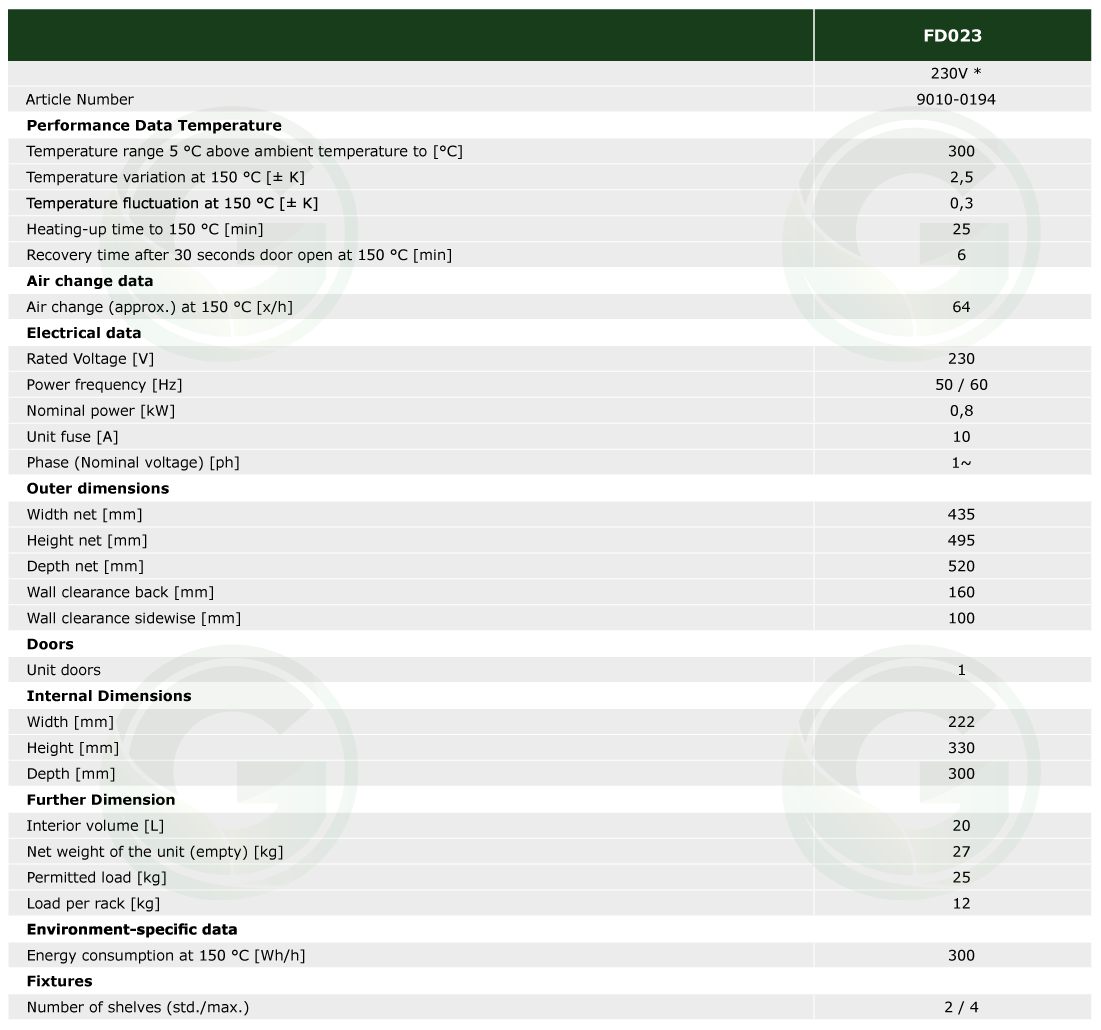

1.2. Technical data

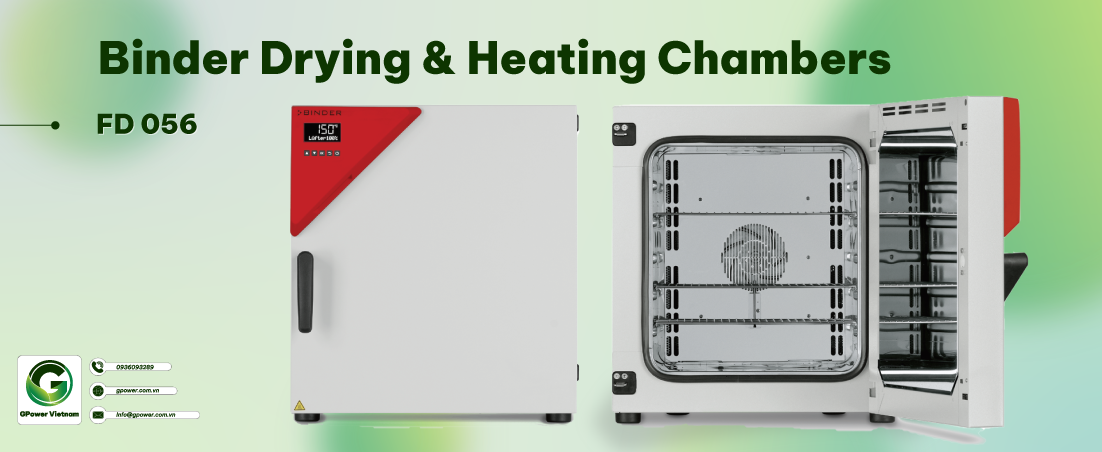

2. Series FD: Drying and heating chambers Avantgarde.Line with forced convection
2.1. Features
- - Temperature range: ambient temperature +10 °C to 300 °C (FD 720: +12 °C to 300 °C)
- - High temperature accuracy thanks to APT.line™ technology
- - Forced convection
- - Controller with LCD display
- - Electromechanical control of the exhaust air flap
- - 2 chrome-plated racks
- - Units up to 115 L are stackable
- - Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
- - Ergonomic handle design
- - USB port for recording data

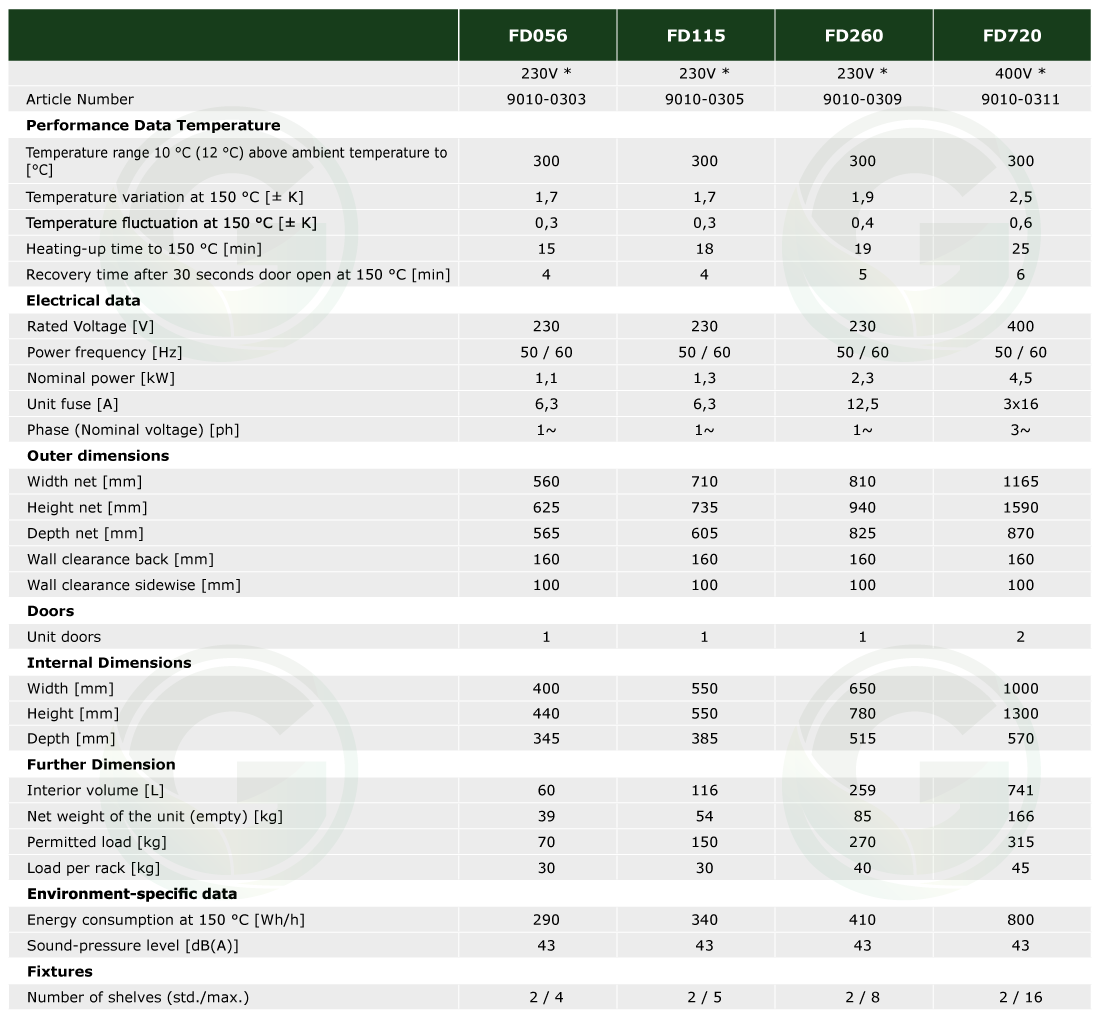

2.2. Technical data

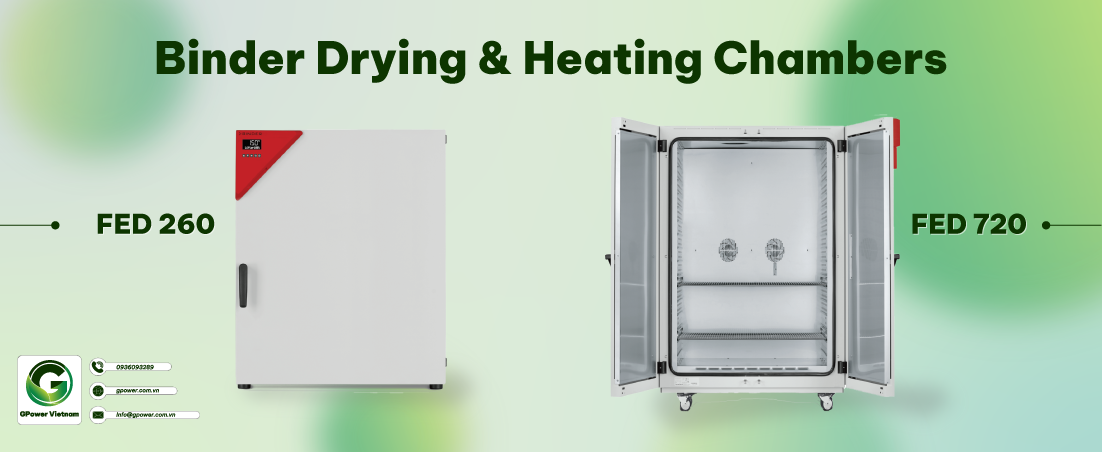

3. Series FED: Drying and heating chambers Avantgarde.Line with forced convection and enhanced timer functions
3.1. Features
- - Temperature range +10 °C upto 300 °C (FED 720: +12 °C to 300 °C)
- - High temperature accuracy thanks to APT.line™ technology
- - Adjustable fan speed
- - Controller with LCD display
- - Electromechanical control of the exhaust air flap
- - 2 chrome-plated racks
- - Units up to 115 L are stackable
- - Class 2 independent temperature safety device (DIN 12880) with visual temperature alarm
- - Ergonomic handle design
- - Ethernet interface
- - USB port for recording data

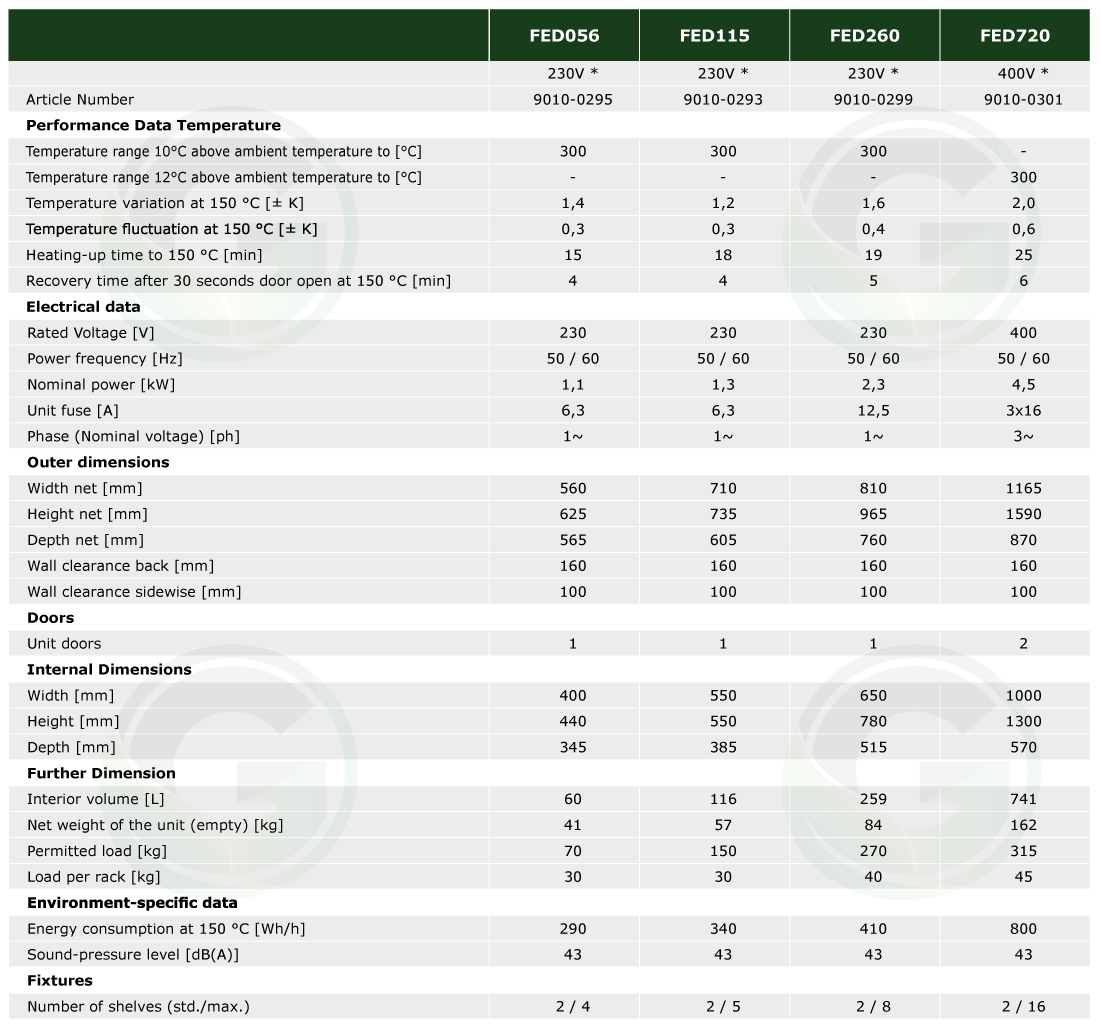

3.2. Technical data

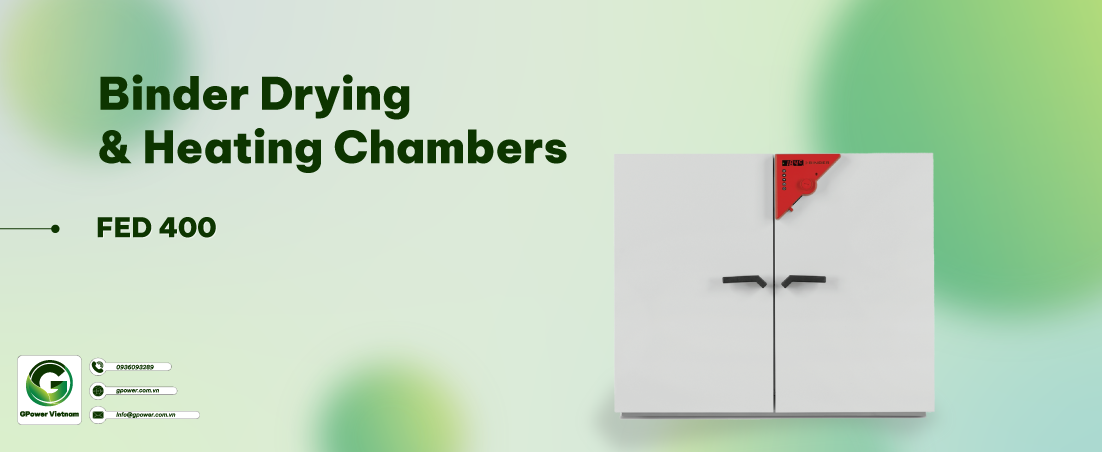

4. Series FED: Drying and heating chambers Classic.Line with forced convection and enhanced timer functions
Heating chambers of the FED series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and 2 adjustable fans, temperature and convection conditions are easily controlled.
4.1. Features
- - Temperature range: room temperature +5 °C to 300 °C
- - APT.line™ preheating chamber technology
- - Adjustable fan speed
- - Adjustable exhaust air flap
- - Controller with expanded timer functions
- - 2 chrome-plated racks
- - Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- - Computer interface: RS 422

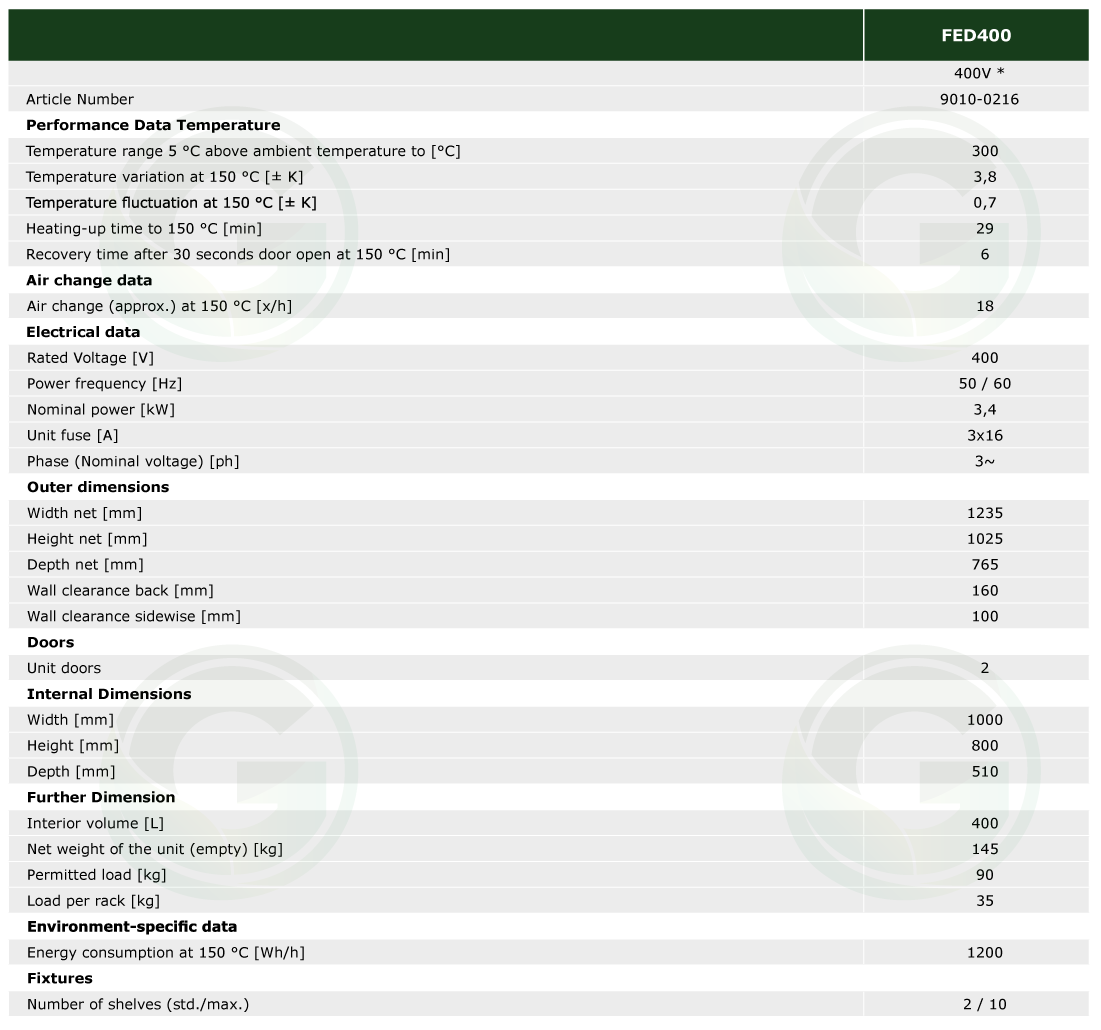

4.2. Technical data
In summary, BINDER drying and heating chambers have many applications and benefits. Please contact GPower Vietnam for more detailed product information.
