Application of Heavy Impact Test chamber

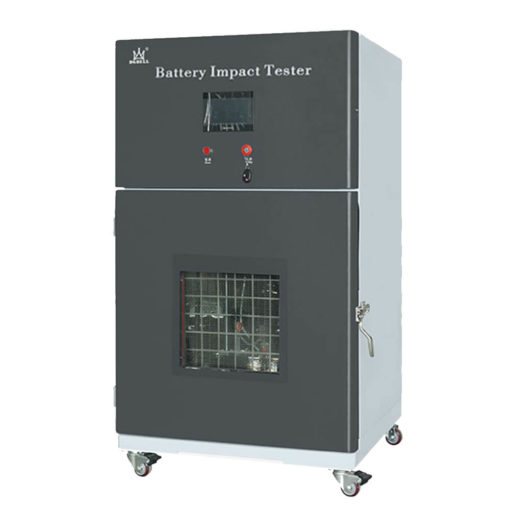

DGBell’s battery impact tester tests the safety of the battery through different weights, different heights and different impact areas. After a series of tests on this battery impact tester, the battery must not have flame or explosion. This device is a kind of battery testing equipment popular among battery manufacturers.
Test requirements of Heavy Impact Test chamber
Performance parameters of Heavy Impact Test chamber

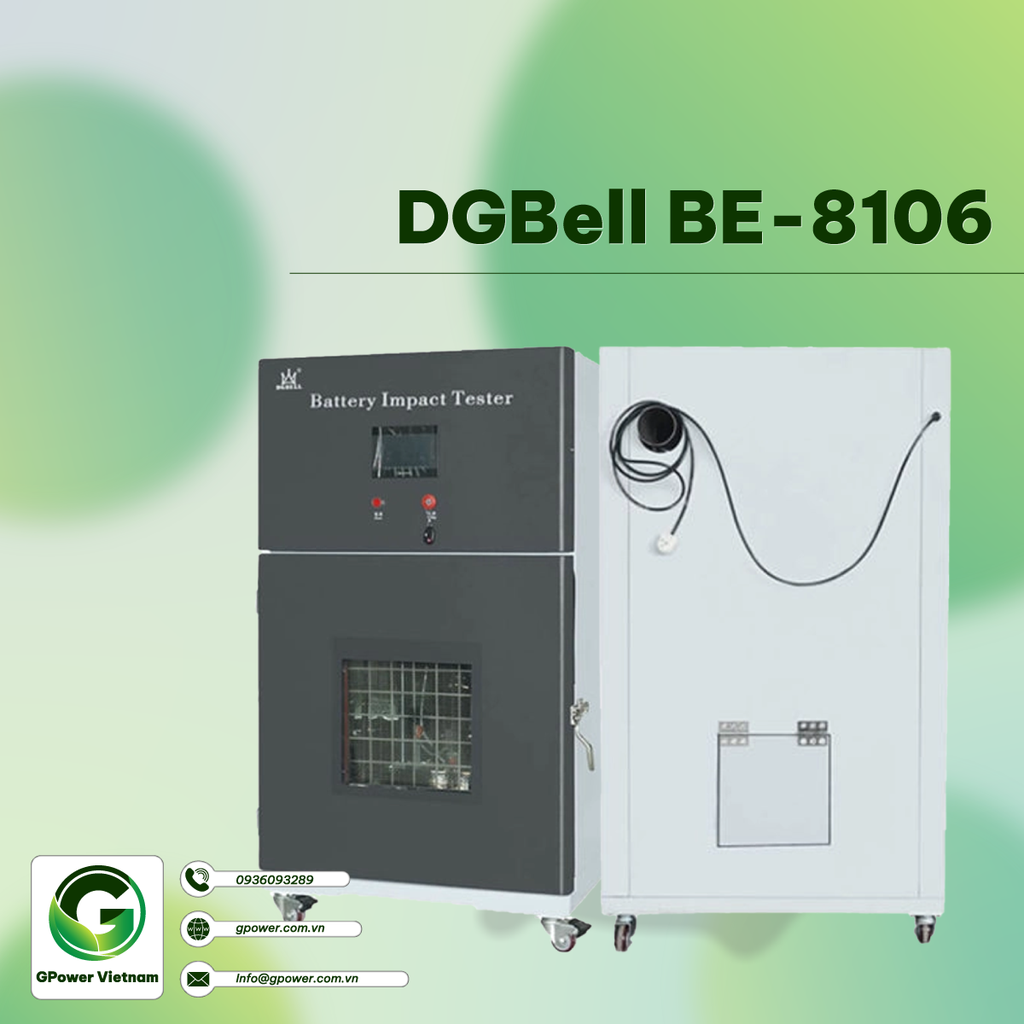

| Model | BE-8106 |
|---|---|
| Structure | All-in-one structure, the door uses explosion-proof lock and explosion-proof chain |
| Drop Ball Weight | 9.1kg±0.1kg |
| Dropping Height | 0~770mm（Adjustable) |
| Control Mode | PLC Touch Screen Control+ Remote Control |
| Crossing Bar Diameter | 15.8 mm |
| Inner Cabinet Dimension | W500 X D300 X H800mm |
| Effective Test Space | W300XD300XH300mm |
| Internal Material | 1.0mm thickness SUS 304# Stainless steel (reinforced). Total 80mm thickness together with external chamber. |
| External Material | 1.5mm thickness Cool-rolled plate |

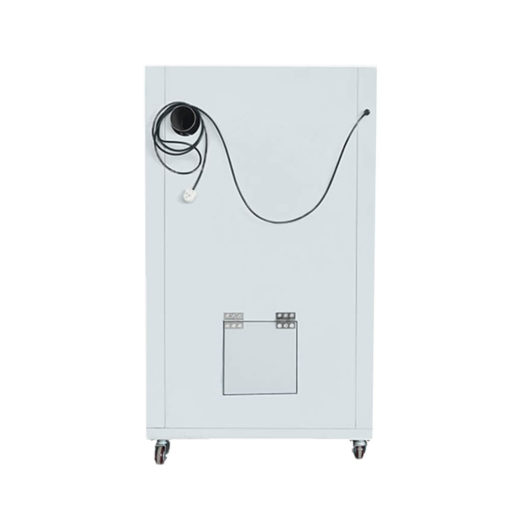

| Air Vent | Diameter: 150mm, at the top of chamber back |
| Observation Window | 390 X 360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh) |
| Lifting Mode | Electric |
| Top / Bottom Impact Surface | Steel Plate |
| Test Space | W300XD400XH200 mm |
| Overall Dimensions | W940XD780XH1620 mm |
| Power Supply | AC 220V / 2.0KW |
| Data Output | Test data can be output by USB flash disk directly . |
| Safety Protection | Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch |
| Options | Temperature acquisition system, voltage acquisition system, video monitoring system |
