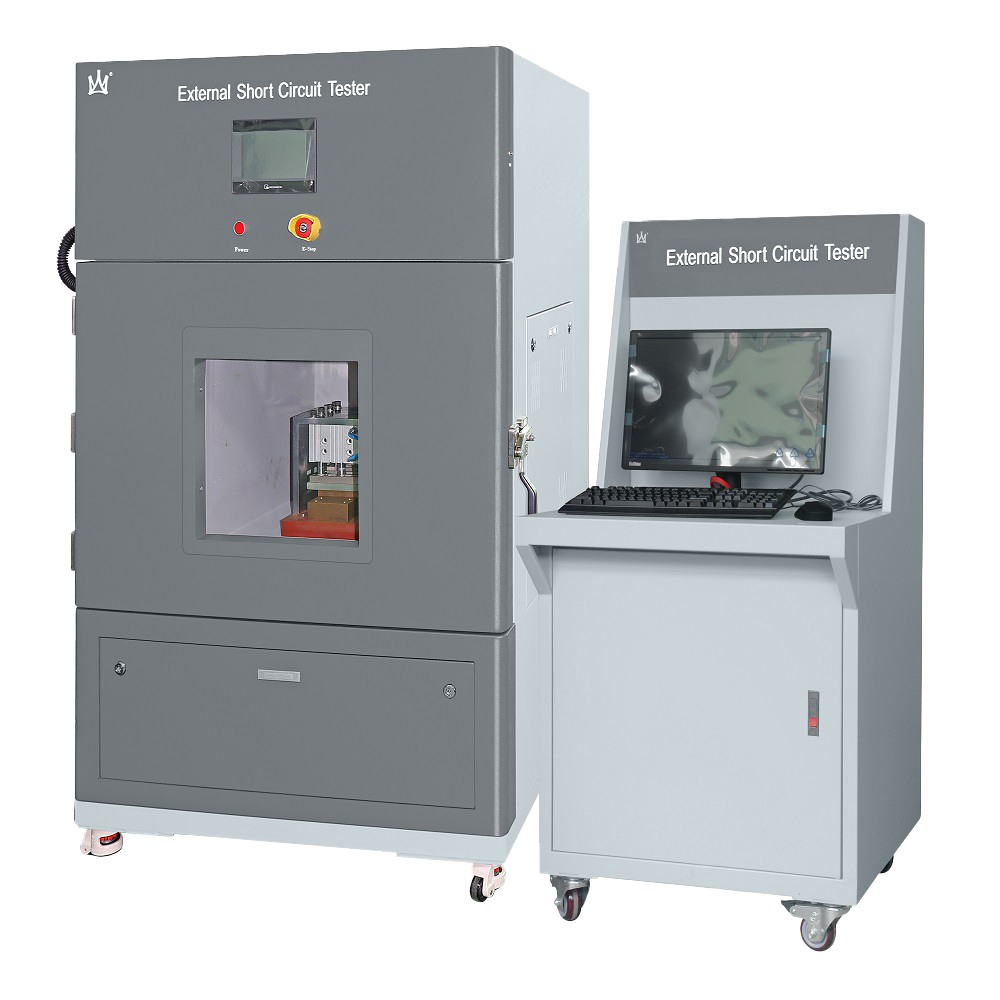

The BE-XL-15000A is one of DGBell's advanced products in the field of battery quality testing. With the ability to test high-current battery short circuits up to 15000A, this product offers precision and reliability in the process of assessing product quality.
Featuring intelligent capabilities and high accuracy, the BE-XL-15000A can accurately evaluate the operational status of batteries under various conditions. This helps manufacturers ensure the quality of their products and enhances their reliability in the market.
One of the key advantages of this product is its ability to test large current battery short circuit, which saves time and cost in the testing process. The BE-XL-15000A is also designed with safety protection features to minimize risk during use. It is equipped with a multifunctional display and automatic features to provide ease of use and convenience for users. Additionally, the BE-XL-15000A is energy-efficient and cost-effective, ensuring sustainability and value for users.
The BE-XL-15000A is a product of DGBell, a reputable partner of GPower Vietnam. With years of experience in material testing, DGBell has gained trust and high ratings from customers for product quality and technical support.
If you want to learn more about this product or place an order, please contact the HOTLINE 0936093289.
Technical specifications of the product
|
Model |
BE-XL-10000A |
BE-XL-15000A |
|
Max. Operating Current |
10000A |
16000A |
|
Max. Transient Current |
12000A |
16000A |
|
Temp. Range |
Ambient Temperature |
|
|
Inner Resistance |
＜1mΩ,＜5mΩ,＜10mΩ,＜20mΩ,＜50mΩ,＜100mΩ (Optional) |
|
|
Control Mode |
Close PLC touch screen control + computer remote control + remote control |
|
|
External Dimension |
W700xD1050xH1830mm |
|
|
Explosion-proof Cabinet Dimension |
W2000xD3000xH2000mm (Option) |
|
|
Voltage Measurement Range |
0~1000V |
|
|
Short Circuit Response Time |
≦20ms |
|
|
Data Interface |
USB, Data card, etc… |
|
|
Safety device |
Video monitor system, explosion protection system, smoke exhaust system, smoke alarm device, explosion proof lighting device, etc. |
|
|
Data Acquisition Module |
Independent remote acquisition and quarantine, multi-voltage/temperature/current acquisition channels ensure data accuracy. Acquisition frequency 100HZ |
|
|
Short Circuit Method |
Pneumatic + vacuum arc extinguishing |
|
|
Safety Alarm device |
Electric leakage, over-current protection, abnormal sound-light alarm, smoke alarm, dual protection system, etc. |
|
|
Testing Fixture |
Customize according to actual testing condition |
|
