1. Technical Specifications
Complies with UL 2580 standards.

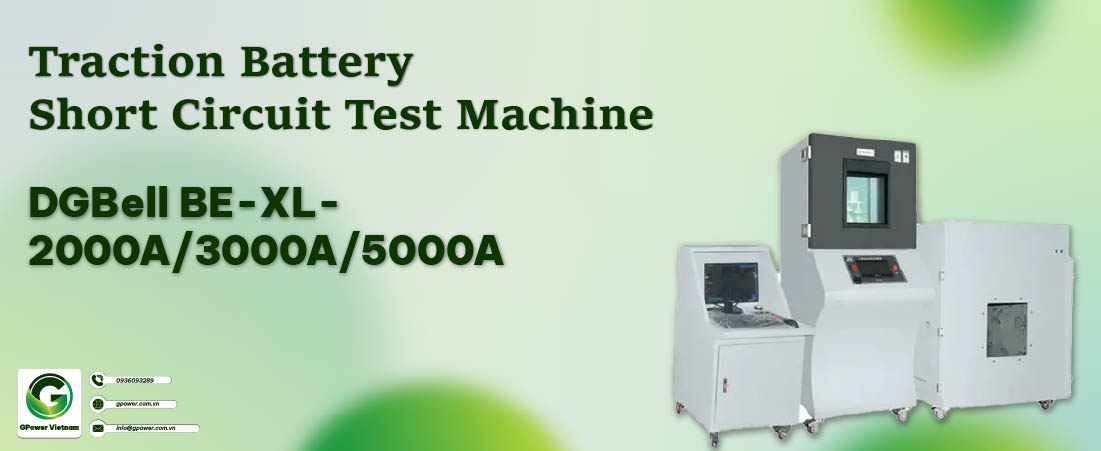

2. Key Features of DGBell BE-XL-2000A Traction Battery Short Circit Test Machine
- - Accuracy and reliability: With a current up to 2000A, the machine can accurately determine the load-bearing capacity of the battery and ensure its stable operation.
- - Flexibility and ease of use: The simple and user-friendly interface allows users to easily adjust test parameters and conveniently monitor the results. You can customize the test time and simultaneously test the durability of the battery.
- - High performance and time-saving: BE-XL-2000A can test a large quantity of batteries at once, saving time and labor. This is particularly useful for battery manufacturers or users who need to test batches of batteries during production.
- - Reliable and safe: DGBell products are renowned for their reliability and safety. BE-XL-2000A is no exception. It is manufactured with high-quality materials and complies with international safety standards.
- - Diverse testing capabilities: BE-XL-2000A goes beyond battery short circuit testing and provides various other testing features. You can test the stability and performance of the battery under high load conditions, measure overall energy output, and even check the battery's self-recovery ability after discharge.
- - Reliability and durability: With superior quality and meticulous attention to detail, BE-XL-2000A is highly regarded for its reliability and durability. This product is made from high-quality materials, ensuring long lifespan and stable operation throughout its usage.
- - Professional technical support: When using DGBell products, you will receive professional technical support from our team of experienced engineers. We are committed to providing detailed support and guidance, helping you understand the product and fully utilize the features of the BE-XL-2000A battery short circuit tester.
The features of the BE-XL-3000A and 5000A product lines are also similar to the product mentioned above.
3. Product specifications of Battery Short Circuit Test Machine
|
Model |
BE-XL-2000A |
BE-XL-3000A |
BE-XL-5000A |
|
Max. Operating Current（A） |
2000A |
3000A |
5000A |
|
Max. Instantaneous Current(A) |
3000A |
4000A |
6000A |
|
Temp. Range |
Ambient Temperature |
||
|
Inner Resistance |
＜1mΩ,＜5mΩ,＜10mΩ,＜20mΩ,＜50mΩ,＜100mΩ(Optional) |
||
|
Control Mode |
PLC Touch Screen + Computer remote control + Remote controller |
||
|
Overall Dimension |
W700xD1050xH1830mm |
||
|
Explosion proof Chamber Dimension |
800 X 800 X 800mm,1000 X 1000 X 1000mm (Optional) |
||
|
Voltage Measurement Range |
0~500V |
||
|
Short Circuit Response Time |
≦20ms |
||
|
Data Interface |
USB, Data card, etc. |
||
|
Data Acquisition Module |
Independent remote acquisition, multi-voltage/temperature/current acquisition channels ensure data accuracy. Acquisition frequency 100HZ |
||
|
Short Circuit Mode |
Pneumatic + vacuum arc extinguishing |
||
|
Safety Device |
Electric leakage, over current protection ,smoke alarm device, abnormal sound light alarm. |
||
|
Testing Fixture |
Customize according to actual testing condition |
||
|
Power Supply |
220V 50HZ |
||
4. Testing Method
4.1 Single Cell Safety Testing (Short Circuit Test)
- - Charge the Cell (contact GPower Vietnam for assistance if you have any doubts about this step).
- - The Cell will be short-circuited by connecting the positive and negative terminals with an external resistor of less than 5mΩ for a duration of 10 minutes.
- - Observe for 1 hour.
4.2 Module Battery Safety Testing (Short Circuit Test)
- - Charge the module battery.
- - The module battery will be short-circuited by connecting the positive and negative terminals with an external resistor of less than 5mΩ for a duration of 10 minutes.
- - Observe for 1 hour.
If you are interested and want to learn more about the DGBell BE-XL-2000A, 3000A, 5000A Battery Short Circuit Testers, please contact us. We are ready to support and answer any inquiries you may have.
